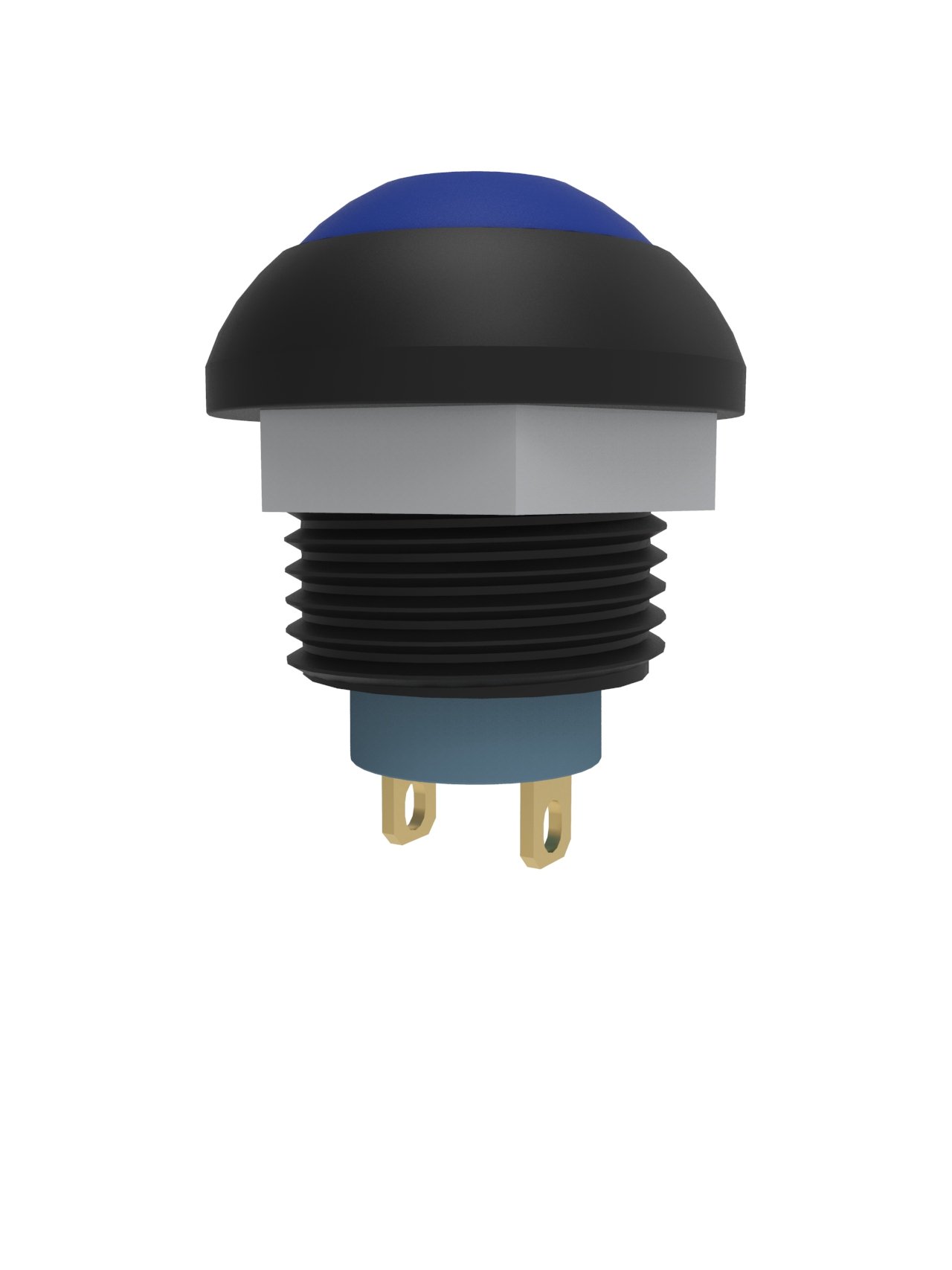

Push Button Switch - Momentary

Push Button Switch - Momentary

Regular price $5.95 USD
Regular price Sale price $5.95 USD
Sale Sold out
Shipping calculated at checkout.
COLOR

SKU:SWP12M-RED

Momentary Push Button Switch - 12mm

momentary switch 12mm

The SW12ML switch is made to be mounted in a 12mm Hole. It is momentary and comes in 6 colors. The switch is normally open and closes when the button is pressed. When the button is released the switch opens.

Specifications:

Max Voltage - 2V/250VAC

Thermal Current - 2A

Minimum Applicable Load 5V AC/DC. 1mA

Contact Material - silver plated

Terminal Type - .110" solder/ quick connect

Operating Temperature - -25C - 65C

Contact Resistance - 5m Ohm max

Insulation Resistance - 1000M Ohm minimum (500V DC Megger)

Vibration Resistance - 10 - 55hz, Amplitude 1.2mm p-p

Electrical Life - 200,000 operations (at full rated load)

Mechanical Life - Maintained: 1,000,000, Momentary: 1,000,000

Solder Temperature 20W/5 seconds or 260C/3 seconds

momentary switch drawing



We also carry a line of latching 12mm push button switches. These switches come in red, green, yellow, blue, white blue, and black. Click below for the latching switches.

Latching 12mm switch green

SWP12L

Latching Switches
