Latching Push Button Switch - 12mm
Latching Push Button Switch - 12mm
SKU:SWP12LRED
Couldn't load pickup availability
Push Button Electrical Switch -12mm Latching
The SW12PL switch is made to be mounted in a 12mm Hole. It is latching and comes in 6 colors. The switch is normally open and closes when the button is pressed. When the button is pressed again the switch opens.
Specifications:
Max Voltage - 2V/250VAC
Thermal Current - 2A
Minimum Applicable Load 5V AC/DC. 1mA
Contact Material - silver plated
Terminal Type - .110" solder/ quick connect
Operating Temperature - -25C - 65C
Contact Resitance - 5m Ohm max
Insulation Resistance - 1000M Ohm minimum (500V DC Megger)
Vibration Resistance - 10 - 55hz, Amplitude 1.2mm p-p
Electrical Life - 200,000 operations (at full rated load)
Mechanical Life - Maintained: 1,000,000, Momentary: 1,000,000
Solder Temperature 20W/5 seconds or 260C/3 seconds
We also carry a line of momentary 12mm push button switches. These switches come in red, green, yellow, blue, white blue, and black. Click below for the momentary switches.
SWP12M
Momentary Switches
Stack-Light .com is here to help with your lighting or switch application. We specialize in industrial lights for machinery and manufacturing. Call and let us help with your project.
![red 12mm push button switch](http://stack-light.com/cdn/shop/products/stack-light-com-switch-push-button-switch-latching-sw12pl-28185945538755.jpg?v=1617023356&width=1445)
![Blue Push Button Switch - Latching](http://stack-light.com/cdn/shop/products/stack-light-com-push-button-switch-latching-sw12pl-28185753682115.jpg?v=1617023323&width=1445)
![yellow latching switch](http://stack-light.com/cdn/shop/products/stack-light-com-switch-yellow-push-button-switch-latching-sw12pl-28185946816707.jpg?v=1617023378&width=1445)
![Green Push Button Switch - Latching SW12PL](http://stack-light.com/cdn/shop/products/stack-light-com-switch-green-push-button-switch-latching-sw12pl-28185947963587.jpg?v=1616787912&width=1445)
![White Latching switch](http://stack-light.com/cdn/shop/products/stack-light-com-switch-white-push-button-switch-latching-sw12pl-28185948815555.jpg?v=1617023393&width=1445)

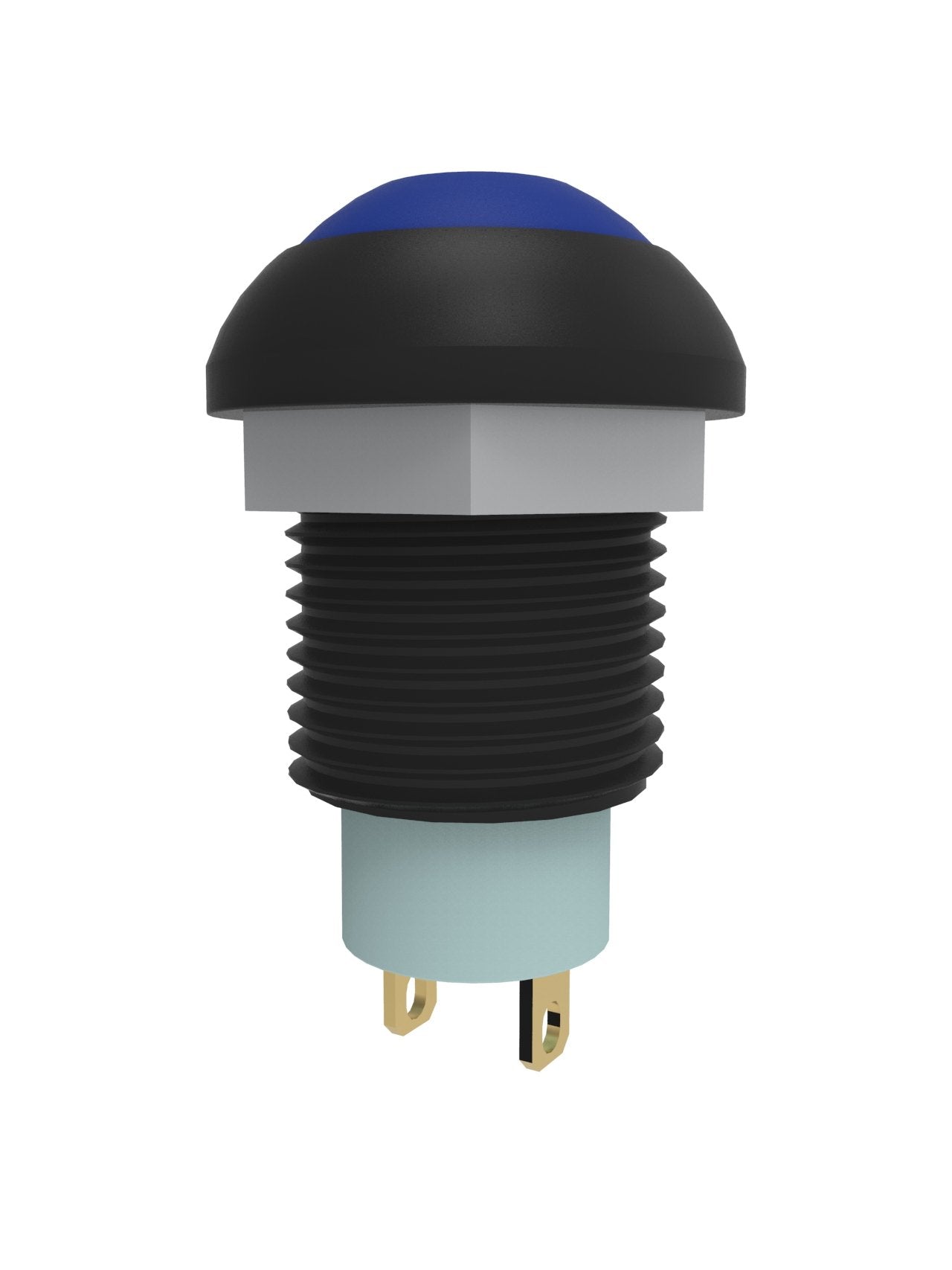

![Blue Push Button latching switch](http://stack-light.com/cdn/shop/products/stack-light-com-switch-blue-push-button-switch-latching-sw12pl-28185950355651.jpg?v=1617023413&width=1445)
