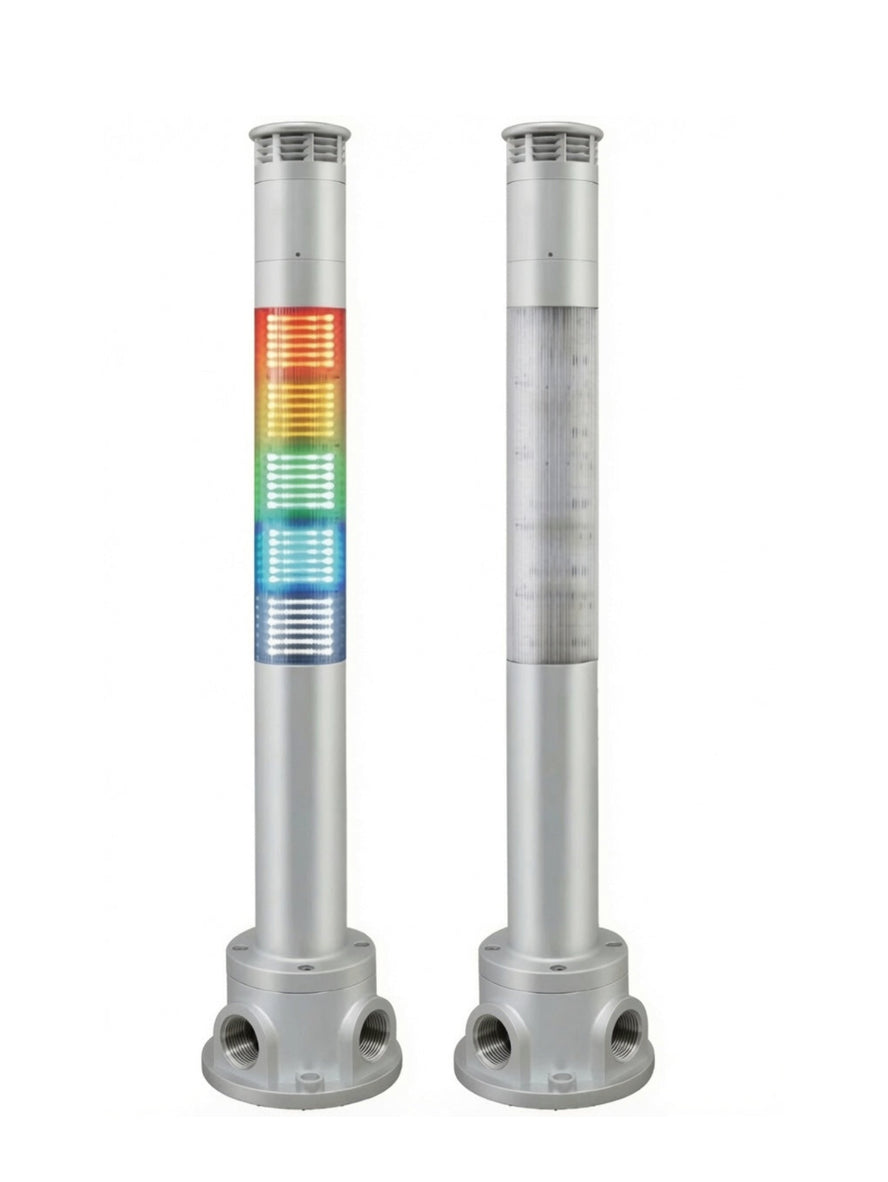

• Stack-Light.com stack light Explosion Proof Stack-Light
1 1

Explosion Proof Stack-Light

Explosion Proof Stack-Light

$1,295.00 USD
$1,295.00 USD
Sale Sold out
Shipping calculated at checkout.
Voltage

SL50-QEX-L

LED Tower Light Explosion-Proof

The SL-Q50 Lights are flame and ignition-proof tower lights for use in explosive gas areas. They are Ex db IIC T6 rated and are made with an aluminum housing to be rugged and long-lasting. The  50mm lens uses a special diffusion tube that condenses the light for long-distance visibility.

explosion proof signal light in a hazard environment

They can be used in refineries, chemical Plants, solvent storage areas, and locations where flammable gases, vapors, dust, or fibers may be present and could ignite if exposed to a spark, arc, or high surface temperature. They are IP66 rated to withstand washdowns and dusty environments.

explosion proof buzzer on a andon light

These come equipped with an explosion-proof 90 dB buzzer that includes a flame arrester (deflagration arrestor) that absorbs the heat from a flame front traveling at subsonic velocities. This drops the burning gas./ air mixture below its auto-ignition temperature, stopping the flame from surviving. The heat is absorbed through channels that are built into the light.



explosion proof stack light wiring
There is a wiring terminal located inside the housing that is used to connect the light to the controls. Explosion-proof cable glands can be ordered separately, or you can supply your own. The cable gland entry is 1/2 NPT.

explosion proof signal light terminal bloack

The explosion-proof tower lights come with 5 colors. The lights are, from top to bottom, Red, Yellow, Green, Blue, and White. Based on how the lights are wired, they can flash or be steady. Wiring is PNP. Can be ordered as 24V DC or 110V - 230V AC.


Specifications:

Operating Temperature - +60C to -40C

Buzzer 90 dB at 1 m

PNP Wiring

ROHS

IP66

Current Draw

Each Light 75mA @ 24V DC, 55mA at 110V-230V AC

Buzzer 50mA @ 24V DC, 40mA @ 110V-230V AC

 Explosion protection rating

Ex db IIC T6 Gb rated

 IECEx - Ex db IIC T6 Gb

Ex tb IIIC T85℃ Db

ATEX - ll2G Ex db llC T6 Gb

ll2D Ex tb llC T85℃ Db

KCs - Ex db llC T6 Gb, IP66/IP67

Certificates:

 IECEx, ATEX, KCs, NEPSI, CCC



Specification Sheet - Explosion Proof Light

Stack-Light.com is standing by to assist with all of your industrial lighting needs. Give us a call. We love to help
