Emergency Stop Button with Buzzer and Flashing Light
Emergency Stop Button with Buzzer and Flashing Light
Regular price
$65.30 USD
Regular price
Sale price
$65.30 USD
Shipping calculated at checkout.
Quantity
SKU:CB-ESMT-05
Couldn't load pickup availability

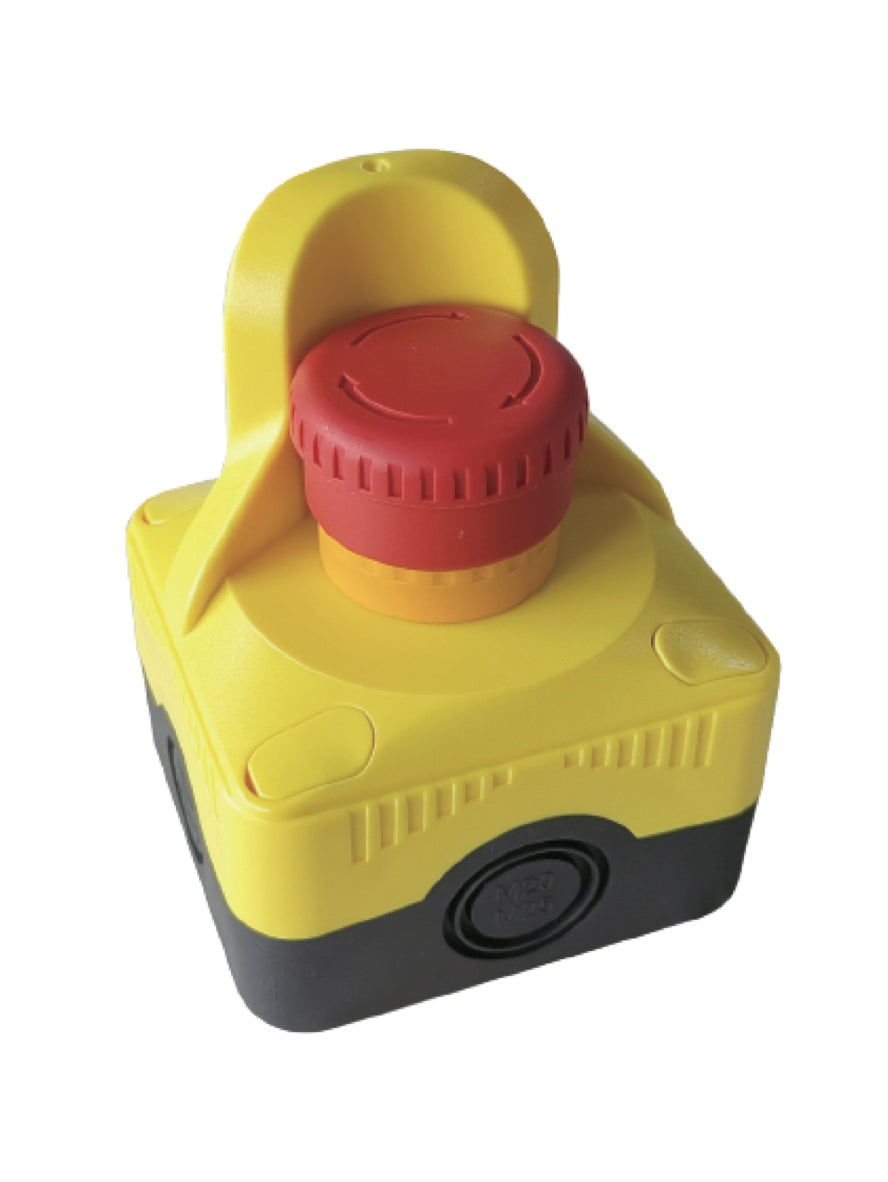

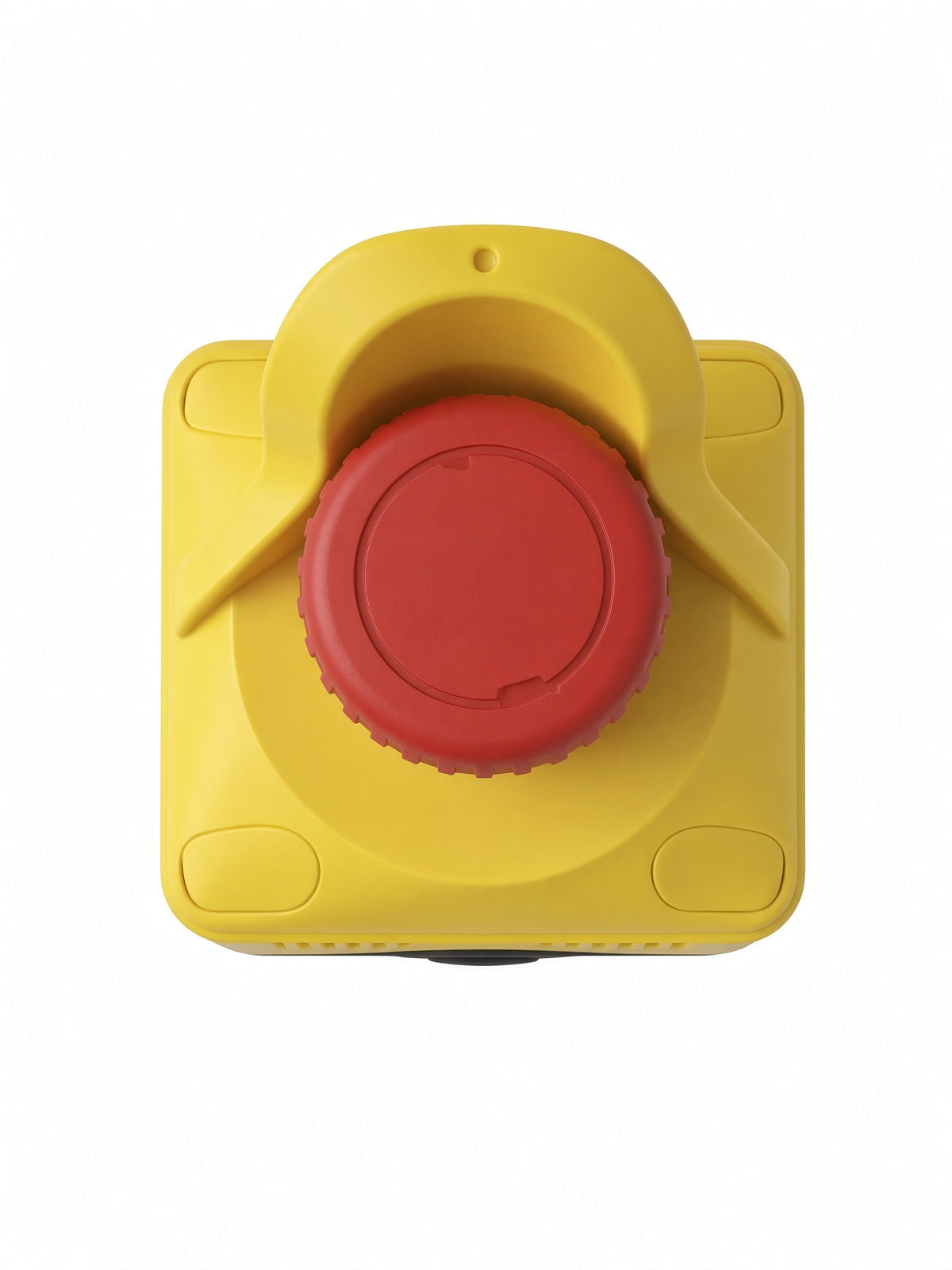

IP65 Audible & Visual Emergency Stop Button with Protective Cover
Stop equipment instantly and alert your team with the MT-05 Audible & Visual Emergency Stop Button. This heavy-duty E-Stop features a protective cover that prevents accidental activation, plus a bright flashing light and intermittent 80 dB buzzer that activate when the button is pressed.
Built for industrial environments, the unit is housed in a self-extinguishing, shock-resistant polycarbonate enclosure. It is rated IP65 to resist dirt, moisture, UV exposure and impact.
It has knockouts on each side to make it easy to wire. The top has removable covers that give access to through holes. This makes it easy to attach to flat surfaces with screws.
Key Benefits:
- Protective cover – Prevents accidental button presses
- Audible + visual warning – Intermittent 80 dB buzzer and flashing light
- IP65 protection
- UV-resistant high-impact polycarbonate
- Easy installation – Multiple conduit knockouts
- Press to stop, twist to release
- Industrial machinery and machine tools
- Automated production lines and process control
- Medical equipment and power systems
- Any application requiring both emergency shutdown and immediate audible/visual status indication
- Harsh environments with dirt, moisture, or vibration
- Protection Rating: IP65
- Rated Voltage: 24 V DC ±10%
- Working Current: 0.01 A
- Buzzer: 80 dB (measured at 10 cm), intermittent
- Light: Flashing (1 Hz – 0.5 s on / 0.5 s off)
- Ambient Temperature: –25 °C to +80 °C
- Connection: Plug-in spring clamp terminals
- Cable Size: 0.34 mm² – 1.5 mm²
- 4 side knockouts
- Self-extinguishing, shock-resistant polycarbonate
- UV resistance
- Operation: Push to stop / Twist to release
