Electrical Contact for Electrical Switches

Electrical Contact for Electrical Switches

Regular price $6.12 USD
Regular price Sale price $6.12 USD
Sale Sold out
Shipping calculated at checkout.

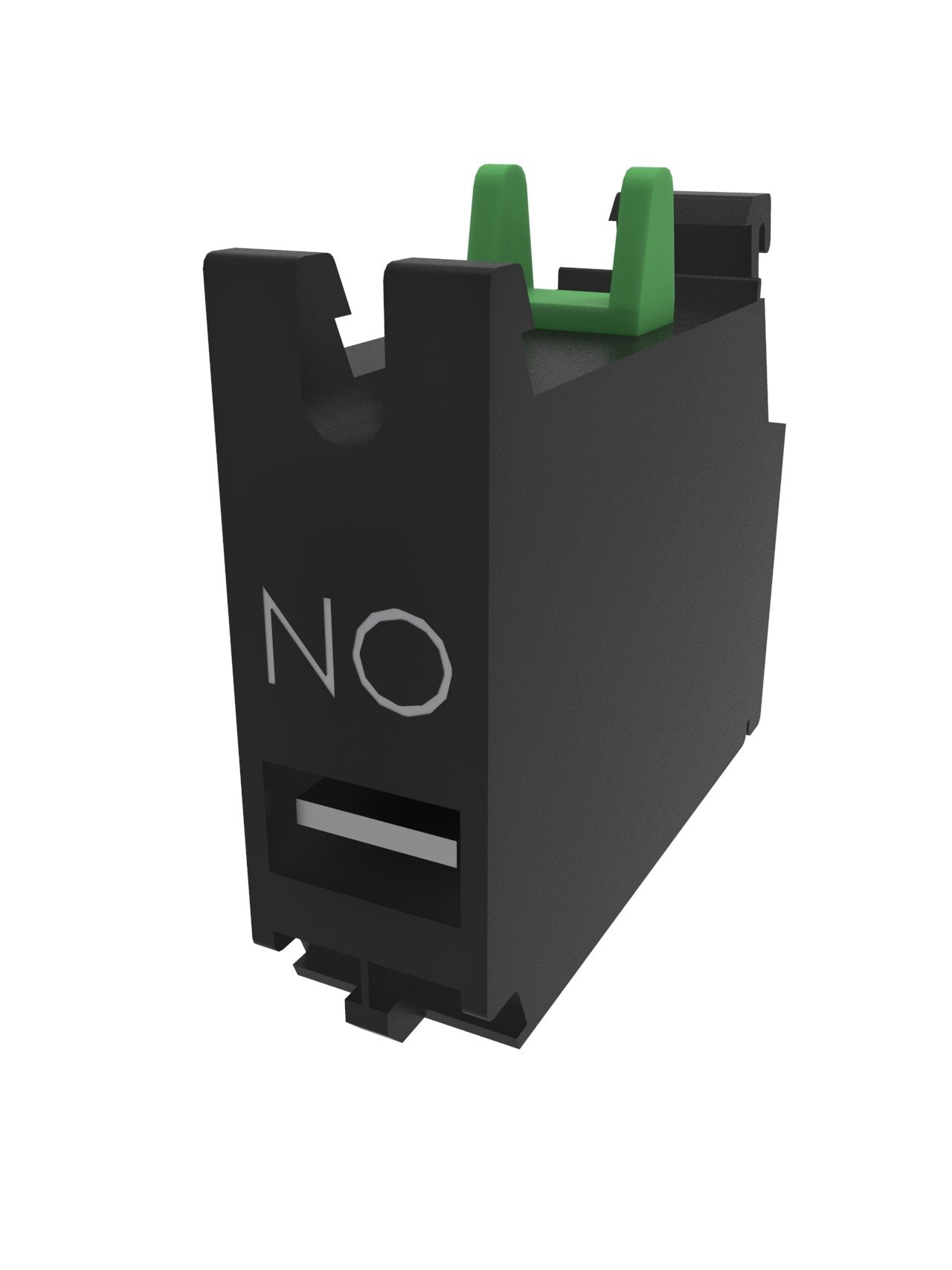

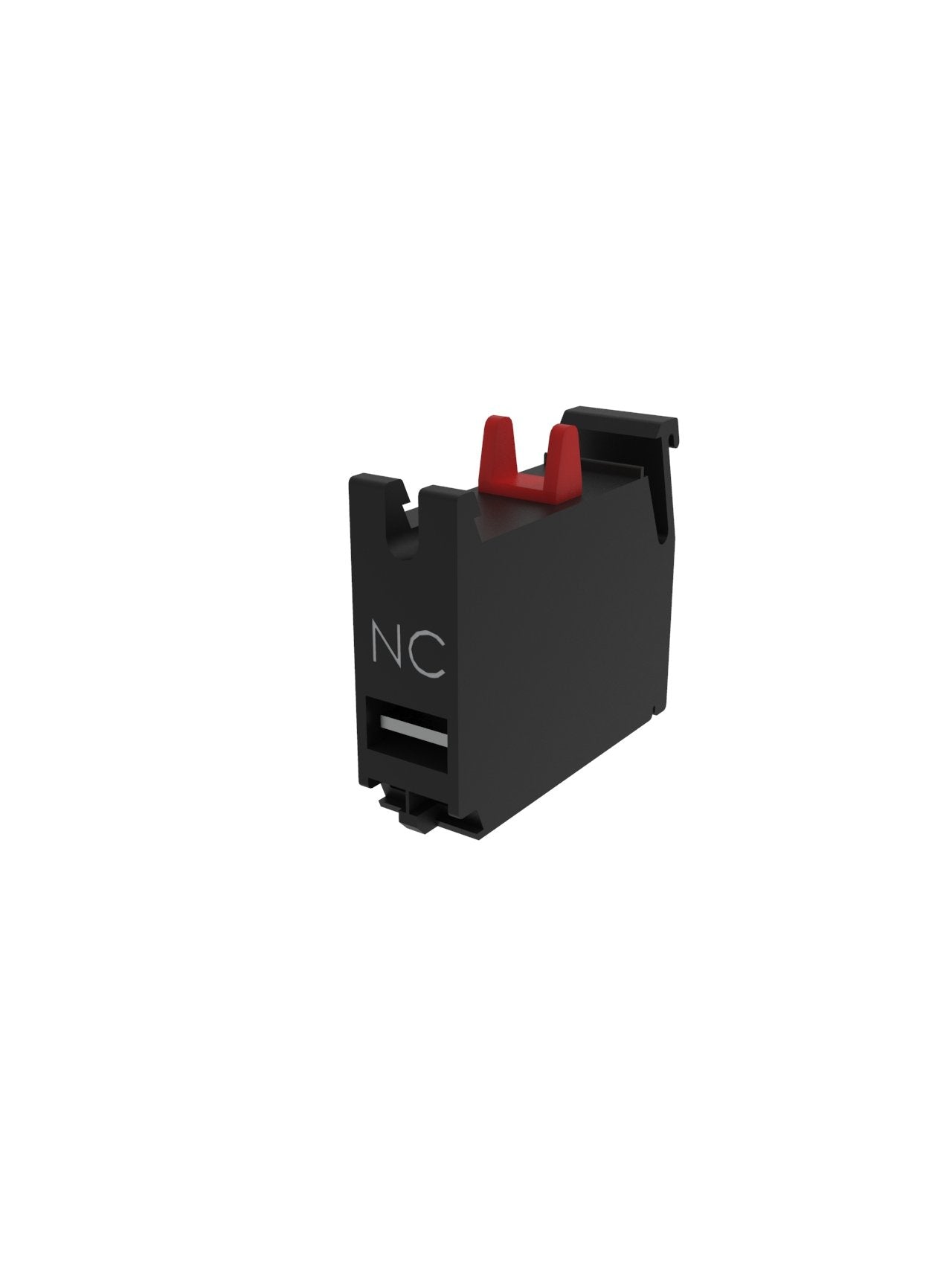

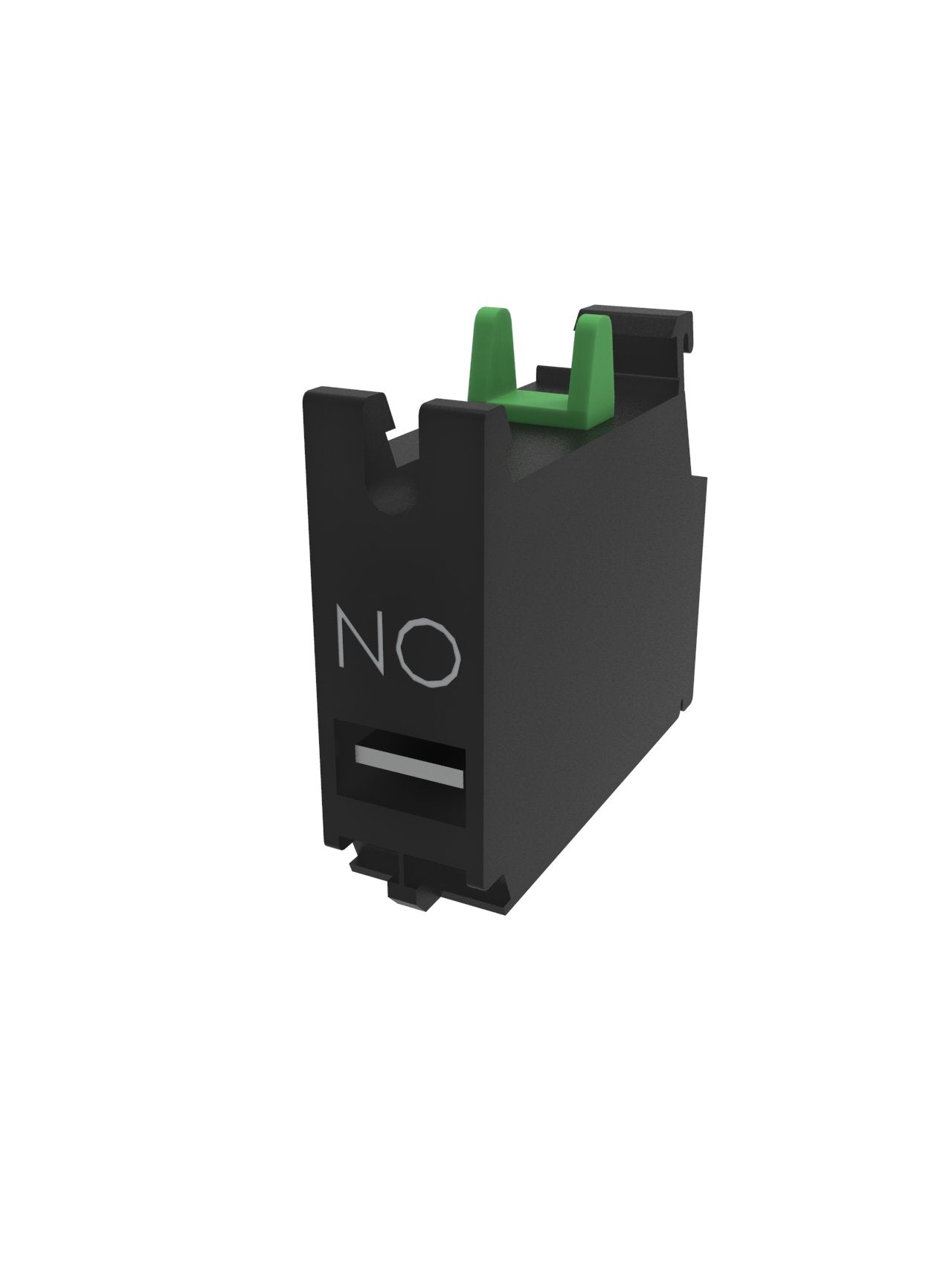

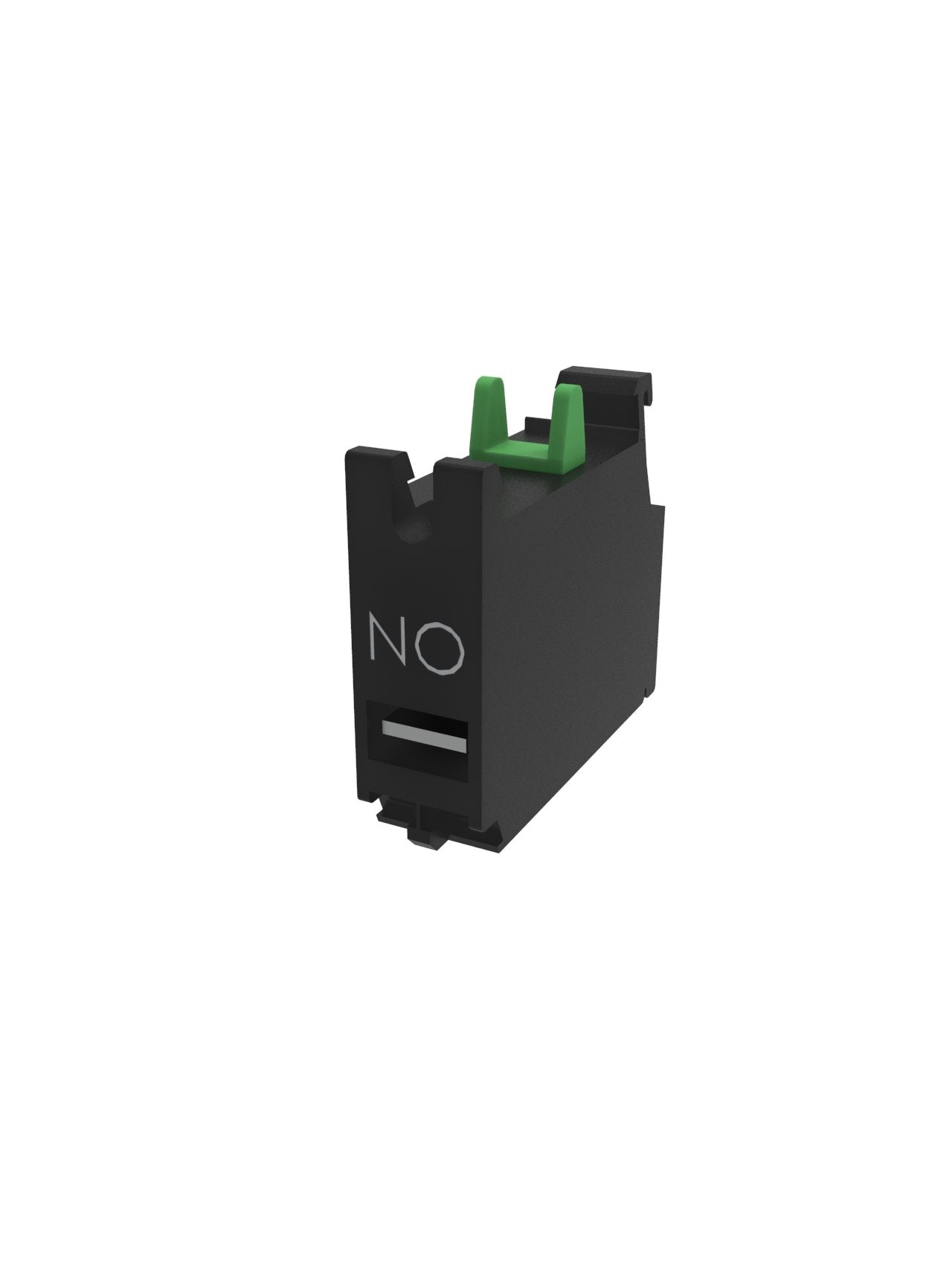

NO & NC Contacts for Push Button and Rotary Switches

Electrical Contacts for Push Button Switches

The SW1 contacts come in a latching and momentary version. They are designed to work with the SWP22 switches. They can be ordered to come with the switch or can be easily added later.

The SW1 contacts are easy to install. They snap onto the switch. They use screw terminals for wiring. These switches can be combined with a Lamp and LED to light up the push buttons on the switches.  They work for the SWP22 latching and the Momentary switch.

lighted 22mm push button switch


Push Button Switch - Momentary with a Lighted button


lighted 22mm push button switch


Push Button Switch - Latching with Lighted button




Thermal Current Ith 10A 50/60HZ

Insulation Voltage Ui 600V

Enclosed Thermal Current Ith 10A

Short Circuit Current 1000A

AC- 120V 6A

AC- 240V 3A

AC-480V 1.5A

AC-600V 1.2A

DC-120V 2.2A

DC-240V 6A

DC-480V .4A

Ambient Temperature: -20 C to 60C

Contact Resistance 50m Ohm ( initial)

Contact Block Life - 1 Million operations is here to help with your application. We carry a large variety of And On lights, Signal Lights, and industrial switches. Call us now!
