Control Box with Built In Switches

Control Box with Built In Switches

Regular price $60.00 CAD
Regular price Sale price $60.00 CAD
Sale Sold out
Shipping calculated at checkout.
Switches

SKU:CB-P-3-S

 Push Button Enclosures with Rotary Switches

The CB-P control boxes feature pre-installed rotary switches with 2 contactors for each switch. These enclosures can be configured for your unique project.

Enclosures with Built in Switches

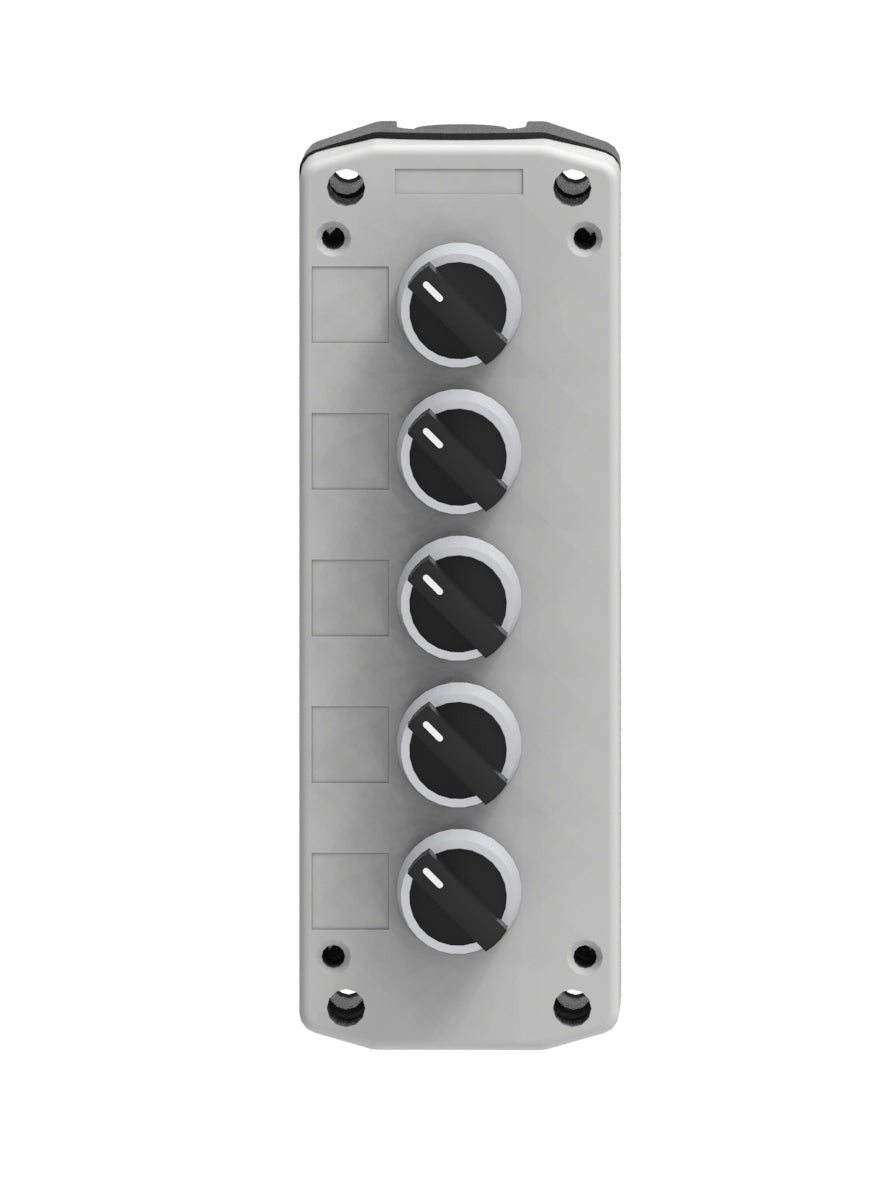

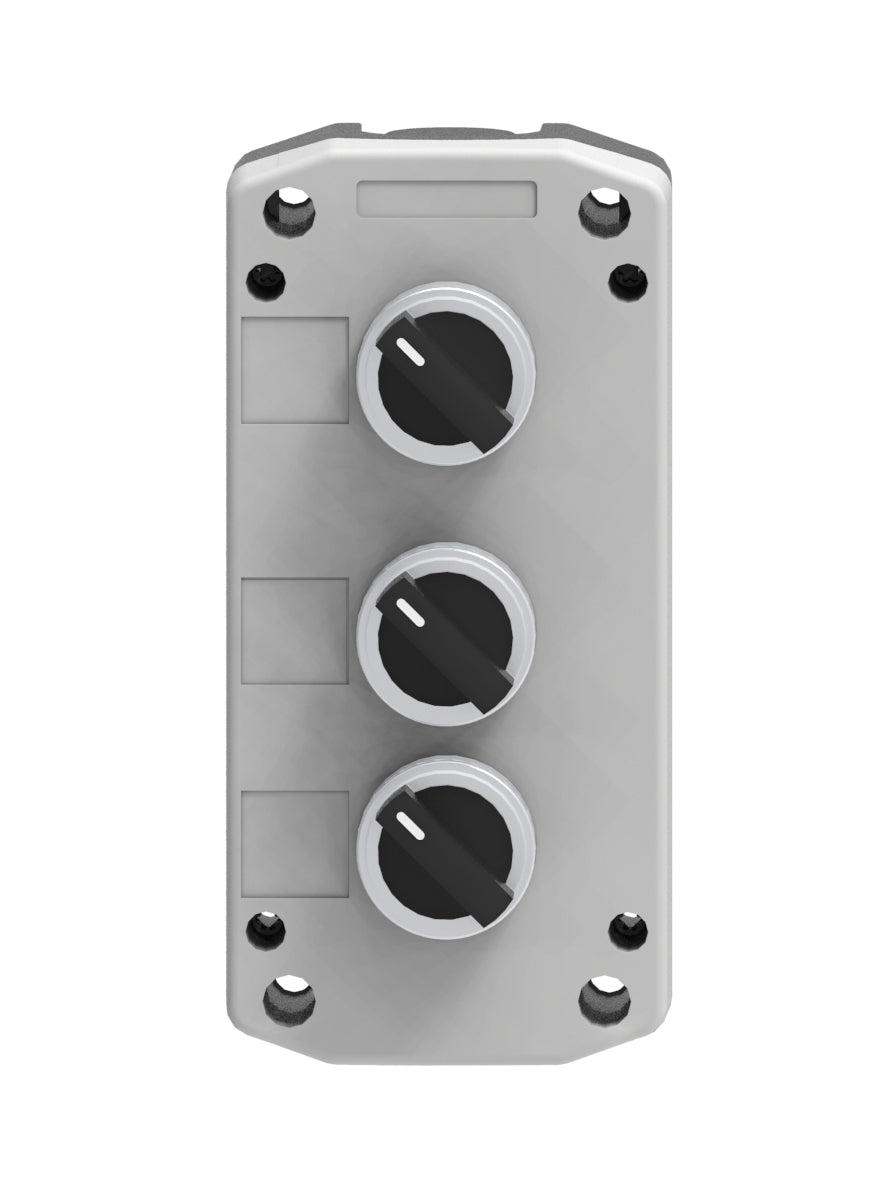

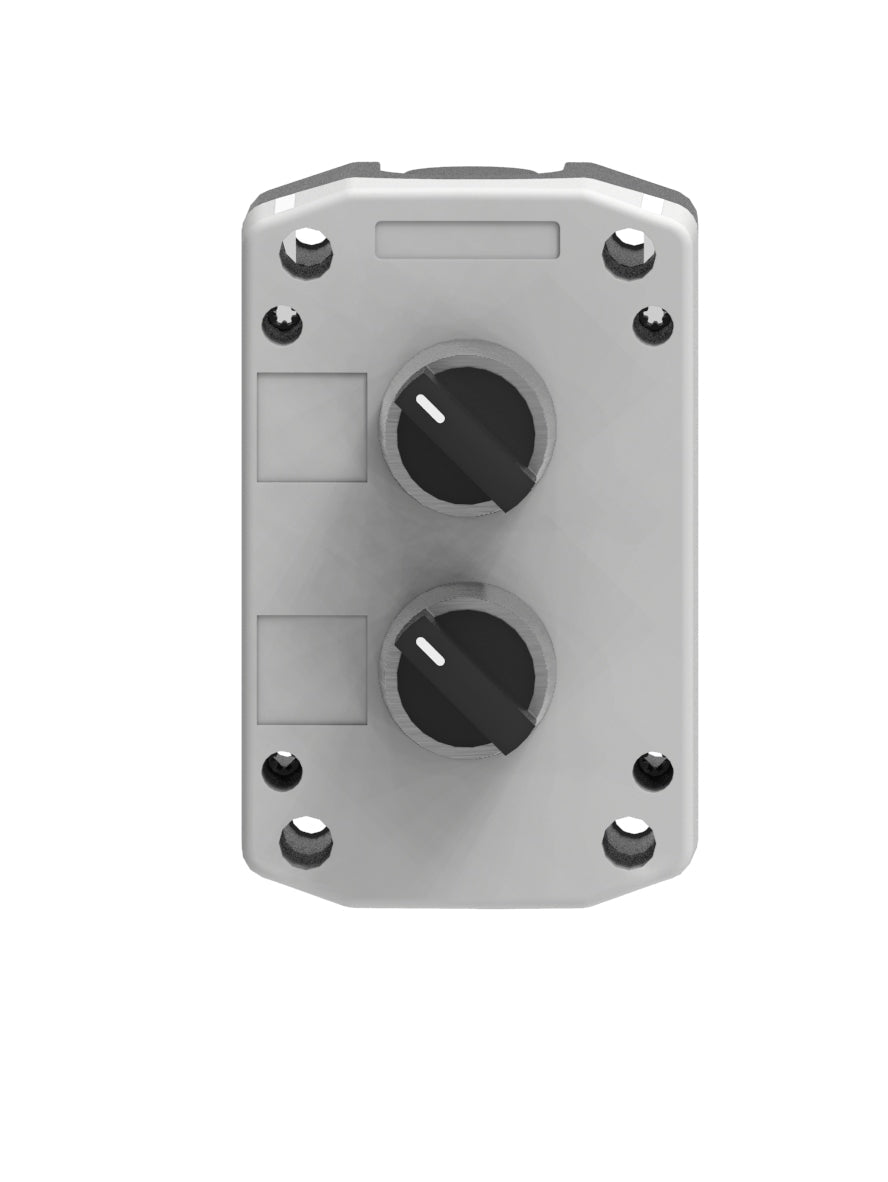

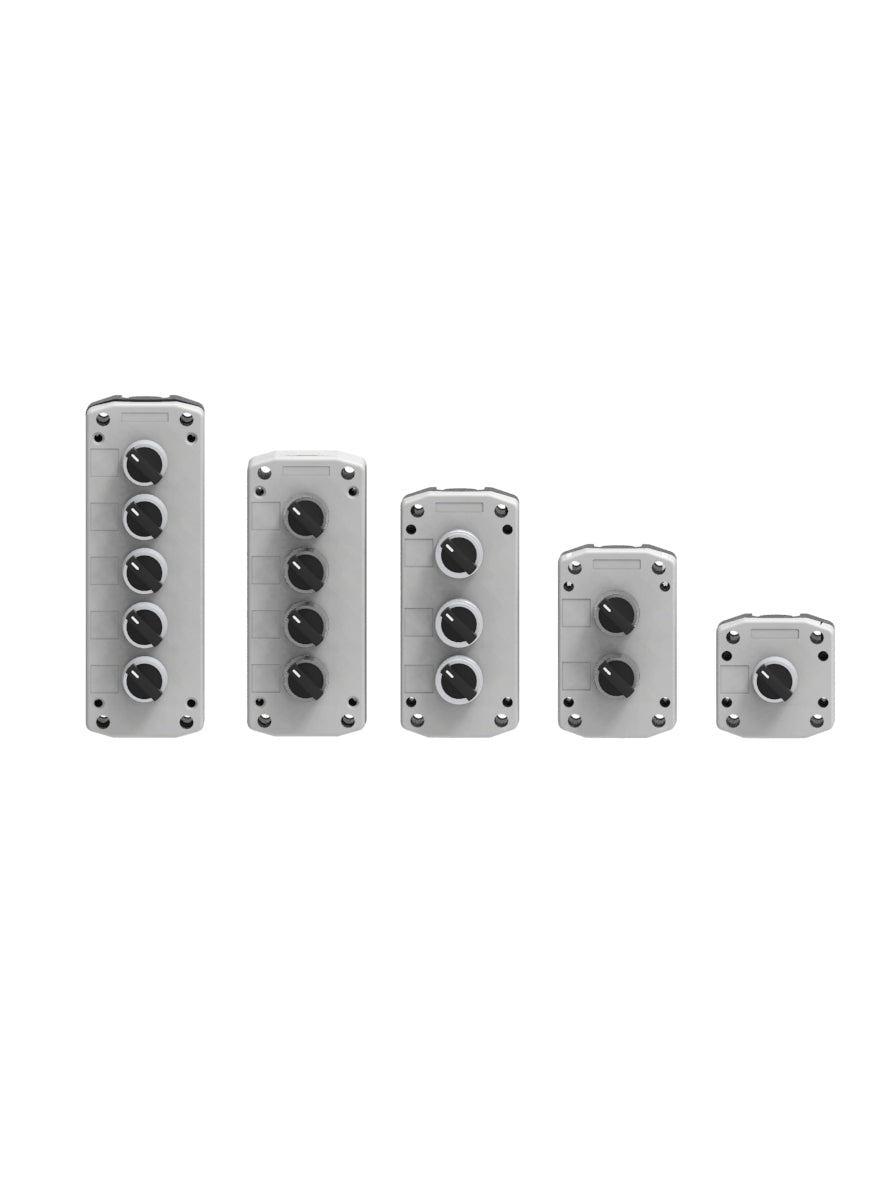

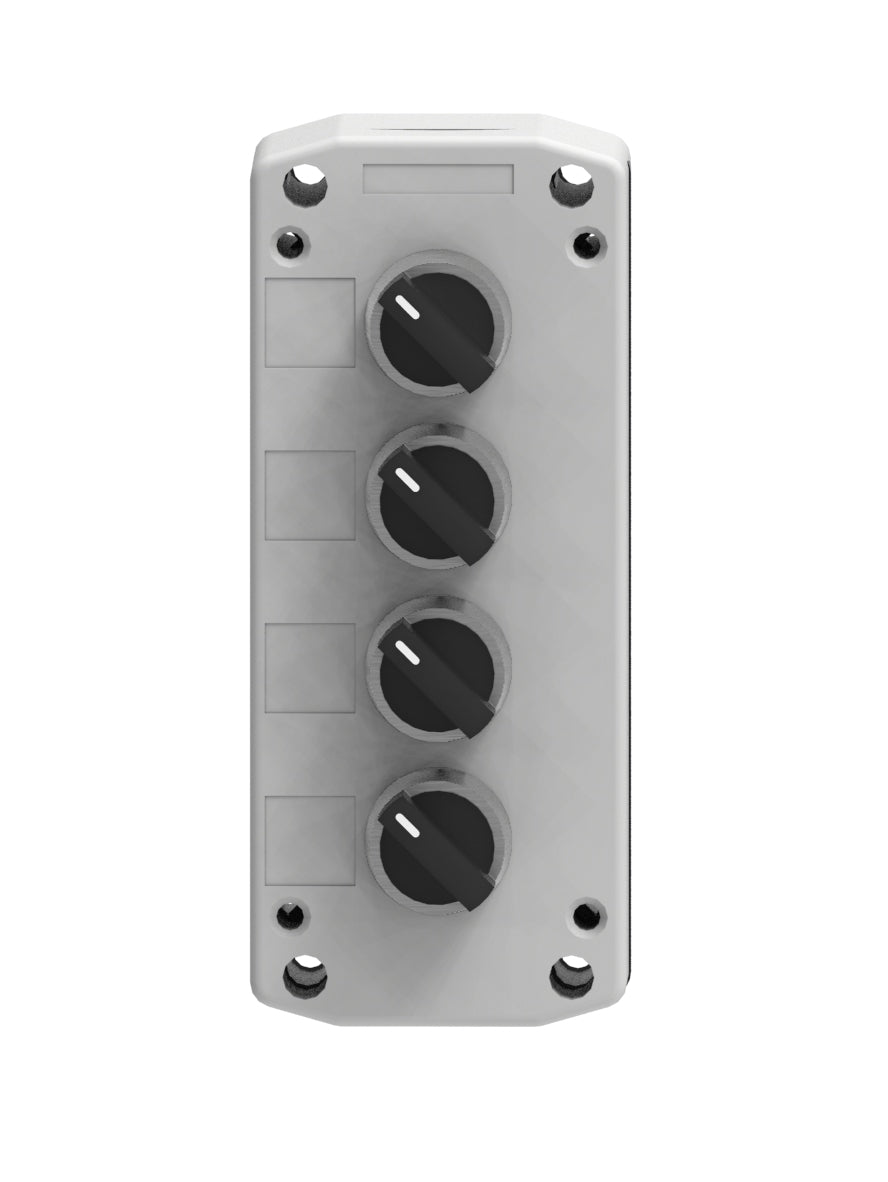

The Control Box Kits are equipped with one to five rotary switches, each switch has one normally open and one normally closed contactor. The switches are designed to be durable and are housed in a metal case for protection.

The modular design of the switches allows for easy switching between NO and NC contactors.

We also offer cable glands and that can be ordered separately. These come in a variety of sizes to fit your specific cable.

We can customize the control boxes with various options such as a keyed switch. Additionally, the contactor arrangement can be modified based on your requirements. For example, the switch can have two normally open contactors, two normally closed contactors one normally closed, and one normally open contactor. We will work with you to build the perfect control box for your project.

The control box enclosures can also be ordered with Rotary switches.

Control Boxes with built in switches

Click to go to Push Button Switch Boxes

Switch Specifications:

Thermal Current Ith 10A 50/60HZ

Insulation Voltage Ui 600V

Enclosed Thermal Current Ith 10A

Short Circuit Current 1000A

AC- 120V 6A

AC- 240V 3A

AC-480V 1.5A

AC-600V 1.2A

DC-120V 2.2A

DC-240V 6A

DC-480V .4A

Ambient Temperature: -20 C to 60C

Contact Resistance 50m Ohm ( initial)

IP 65

Button Life - 1 Million operations

Contact Block Life - 1 Million operations

 At Stack-Light.com, we are continually innovating and expanding our product line. We carry a large variety of switches, Andon Lights, and Wash Down Work lights.  Call us today. We love to help.
