Push Button Control Box CB-P-B

Push Button Control Box CB-P-B

Regular price $44.75 USD
Regular price Sale price $44.75 USD
Sale Sold out
Shipping calculated at checkout.
Buttons
Switch Type
Button Type

SKU:CB-P-3-M-PO

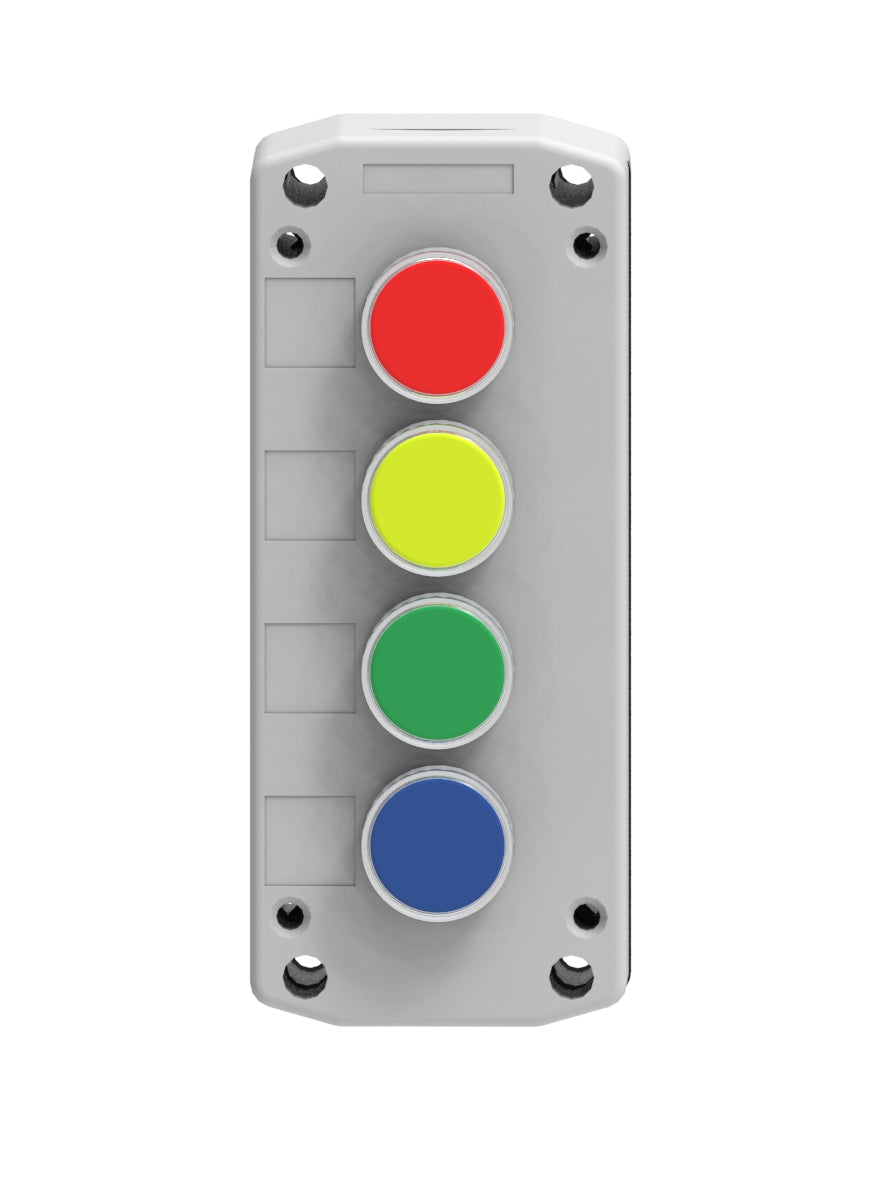

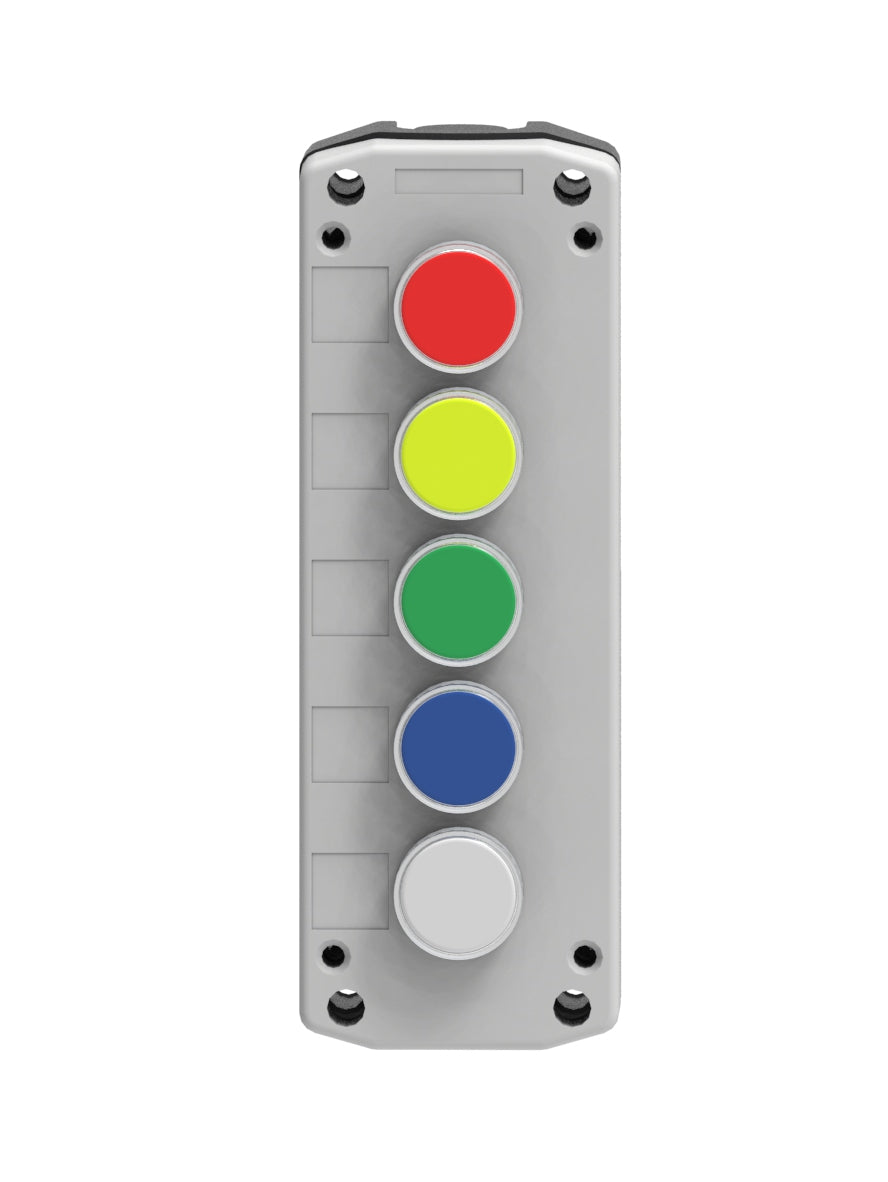

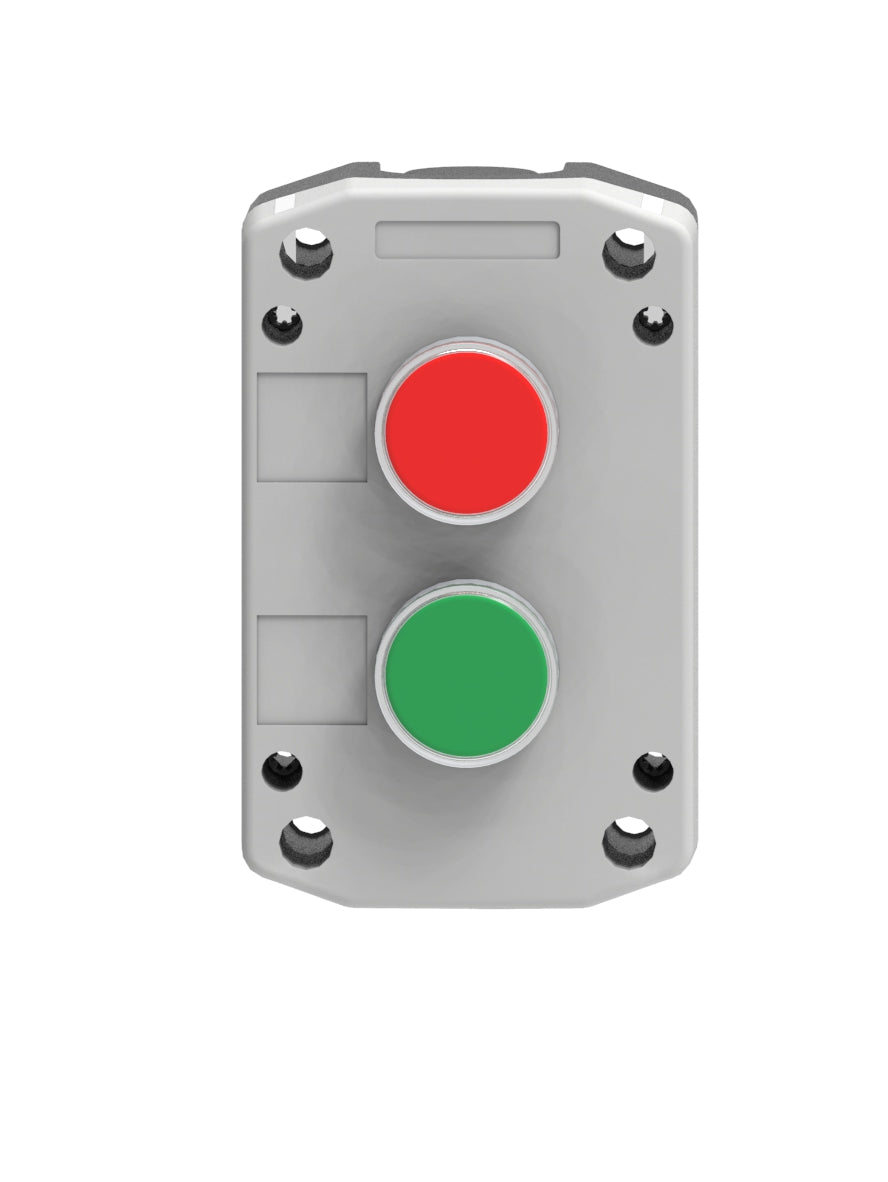

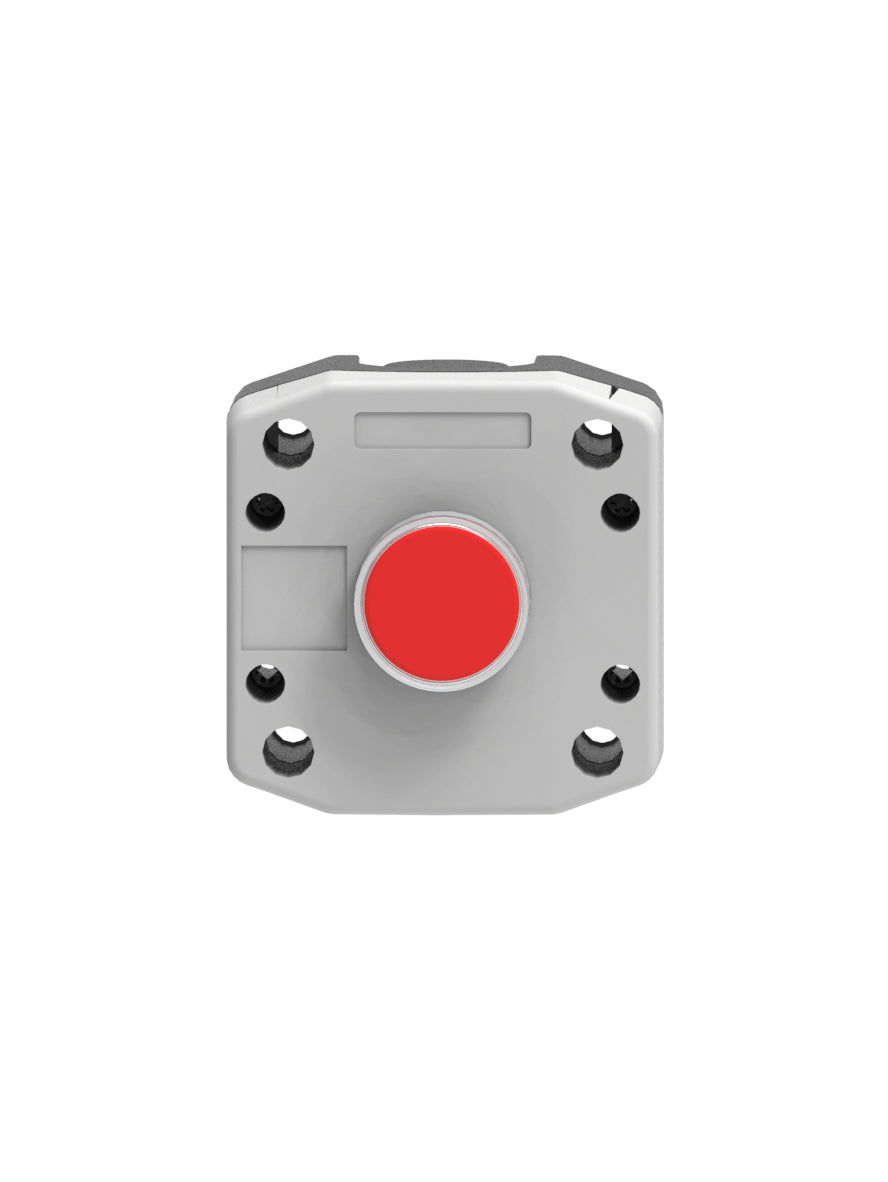

The CB-P-B control box features pre-installed push buttons that can light up when pressed. Select between momentary or latching switches. These can be configured for your unique project.

Push Button Control Box

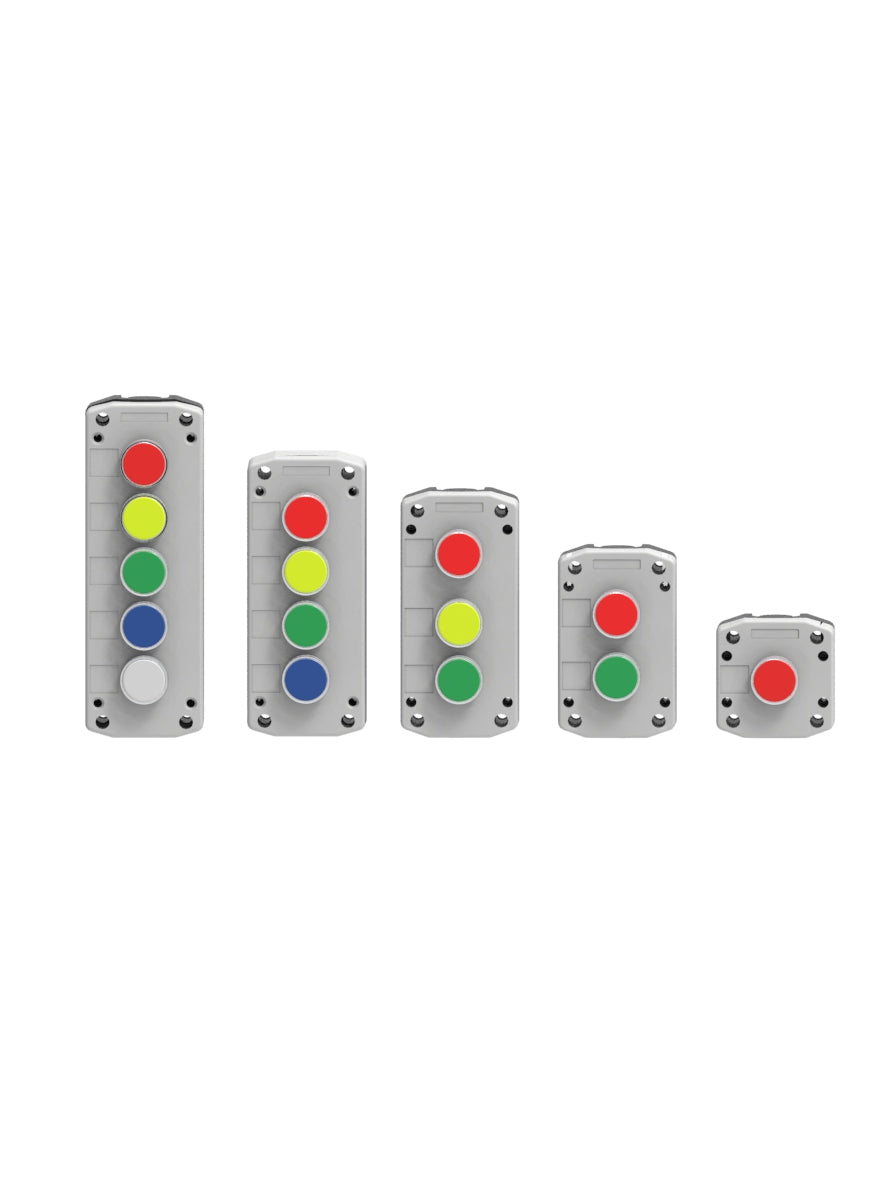

The Push Button Control Kits are equipped with one to five colored buttons, each having one normally open and one normally closed contactor. You can also order buttons with an LED, which makes it easy to light up the button when it is in the on state. The button is designed to be durable and is housed in a metal ring. The switches have an estimated life of one million cycles.

The Lighted version can be configured with either a 24V LED or a 110V LED. The switches have a modular design, making it easy to switch contactors from NO to NC and to add a light to the button in the future.

We also offer cable glands and that can be purchased separately. These come in a variety of sizes to fit your specific cable.

The control boxes can be customized with options like a keyed switch.  The contactor arrangement can also be modified. For instance, the switch can have two normally open contactors, two normally closed contactors one normally closed, and one normally open contactor. We will work with you to build the perfect switchbox for your project.

The control box enclosures can also be ordered with Rotary switches.

control boxes with rotary switches built in

Click to go to Rotary Switch Boxes

Switch Specifications:

Thermal Current Ith 10A 50/60HZ

Insulation Voltage Ui 600V

Enclosed Thermal Current Ith 10A

Short Circuit Current 1000A

AC- 120V 6A

AC- 240V 3A

AC-480V 1.5A

AC-600V 1.2A

DC-120V 2.2A

DC-240V 6A

DC-480V .4A

Ambient Temperature: -20 C to 60C

Contact Resistance 50m Ohm ( initial)

IP 65

Button Life - 1 Million operations

Contact Block Life - 1 Million operations
