Audible Alarm - Indicator Light

Multicolored LED with Buzzer

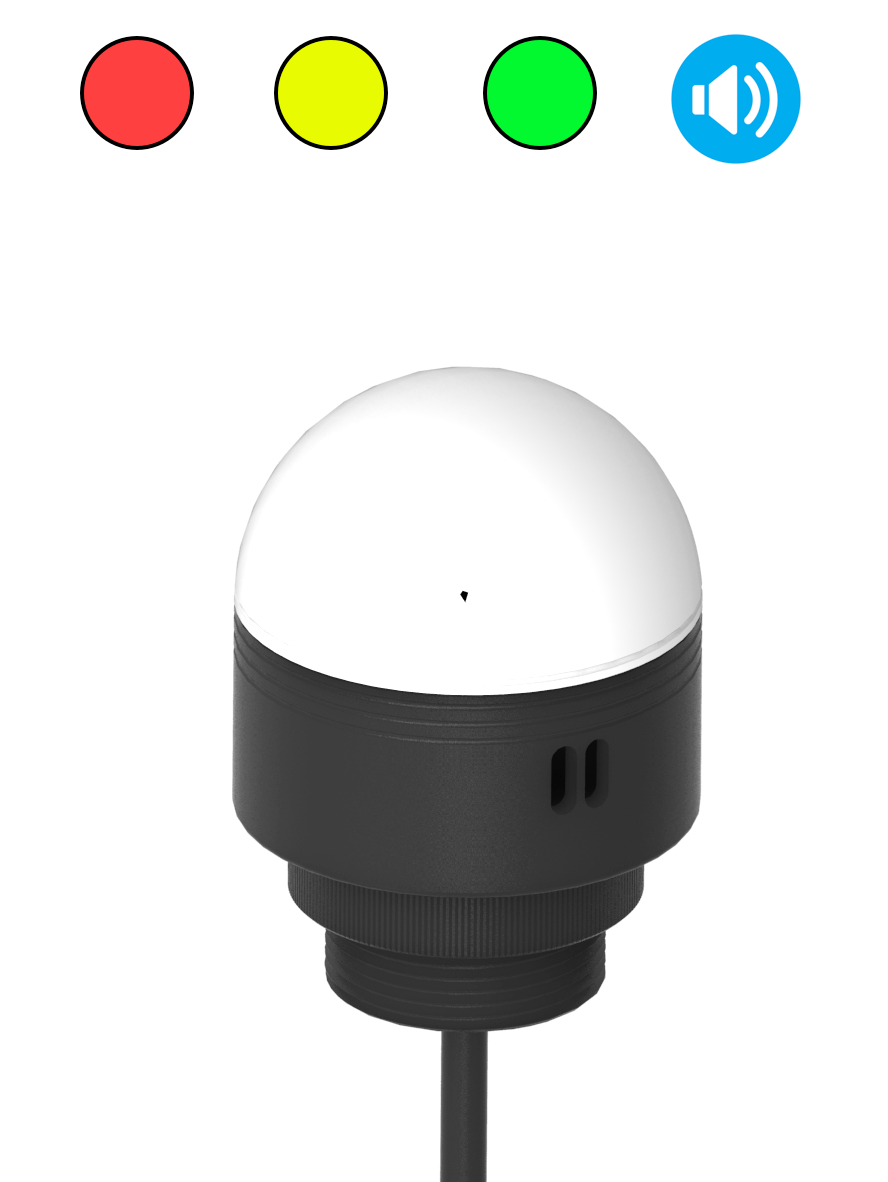

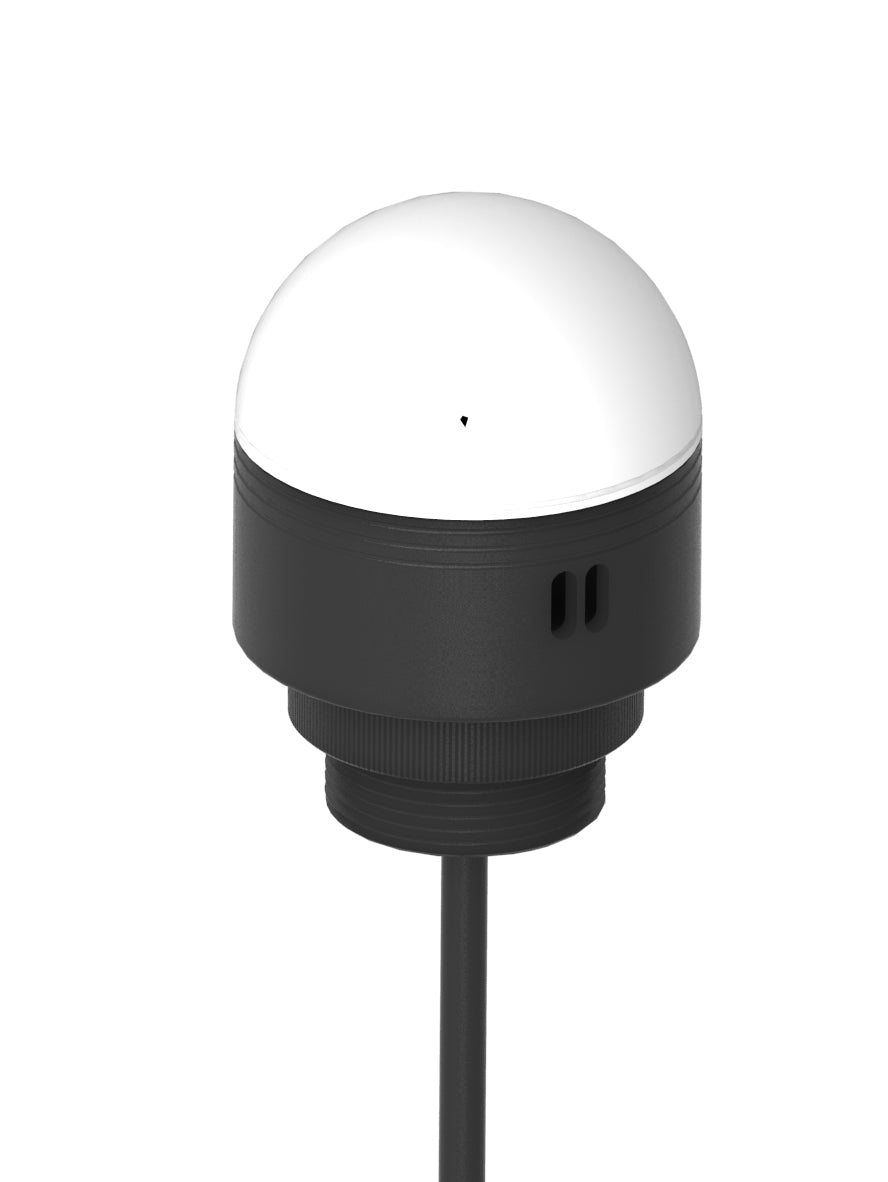

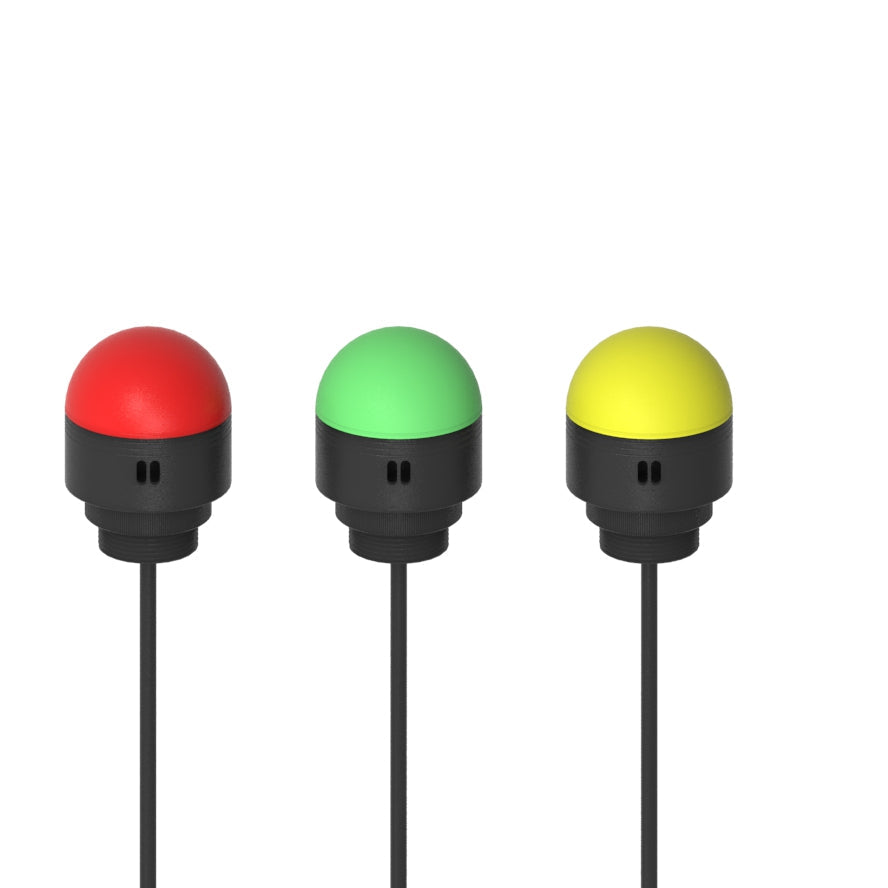

The ILTB Light is a multi-colored LED light that is capable of turning red, green, or yellow. They come with a built-in buzzer. The buzzer can alarm individually or be tied to any of the light colors.

See more options in our Stack Lights collection or our LED Indicator Lights collection.

Typical applications:

• Robot status lights
• Automated assembly stations

• Warning lights

• Industrial Signal Lights
• Andon Lights
• Machine Signal Light

Specifications:
Aluminum Housing PC Lens
12-24volts DC
Wiring NPN & PNP
Certification CE
Working Temp -4F to 110 F
3W
Input Current for each Color 30mA-50mA
Buzzer Volume 90dB
Rating IP30

50mm Bracket Accessory

ILTCB-50-NW CAD File
