Mini Stack Light
tiny and on light signal works with 24V
Stack-Light.com stack light Mini Stack Light - SL30
miniature signal light
Stack-Light.com stack light Mini Stack Light - SL30
mini stack light
small and on light
mini signal light stack light

Part #

Mini Stack Light - SL30

  • $67.00




Small Tower Light

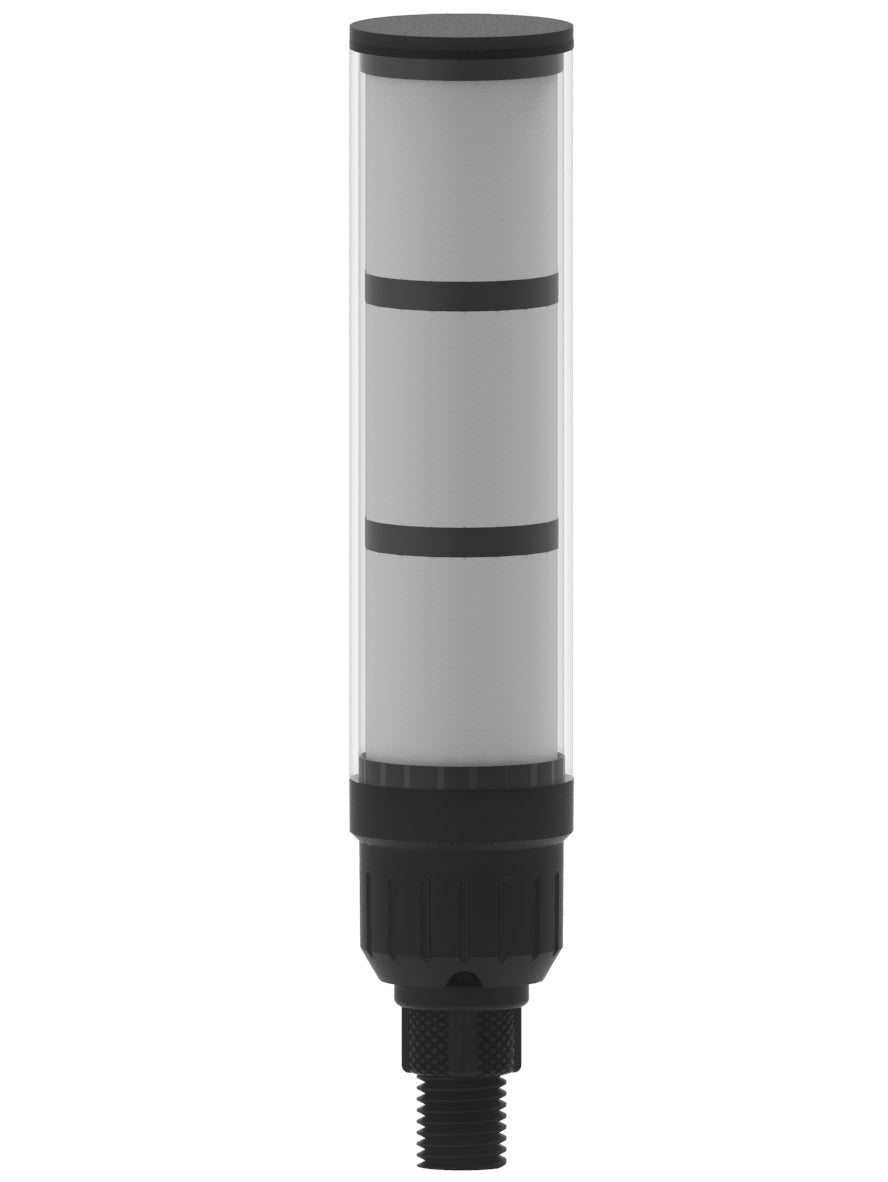

The SL30 is Mini-Stack Light. It is 6 inches long and 1 inch in diameter. This makes it perfect for smaller machinery or spaces that require a low-profile signal device. It is powered by 24V DC. These are often used as signal lights for machine centers or small tower lights on automated equipment.

small signal tower, small tower light, small andon, mini stack light

Each unit is equipped with a buzzer and highly visible LED. The Indicator lights are made with long-lasting LEDs that consume very little power. They can be viewed at long distances to inform operators of machine status or instruct operators to perform a predefined task.

You can specify if the light flashes or not when the light is in the Red alarm condition.

Stack-Light.com’s goal is to make it simple for you to configure the perfect signal device to fit your application. You can specify if the light flashes or not when the light is in the Red alarm condition.

  • Configurable for your application
  • Power 24V DC
  • High visibility signal light can be viewed easily at a distance
  • Green, Orange, and Red Status Lights
  • Built-in Alarm Buzzer 95 dB
  • Long-Lasting LED light
  • Durable Construction
  • Low Power Consumption

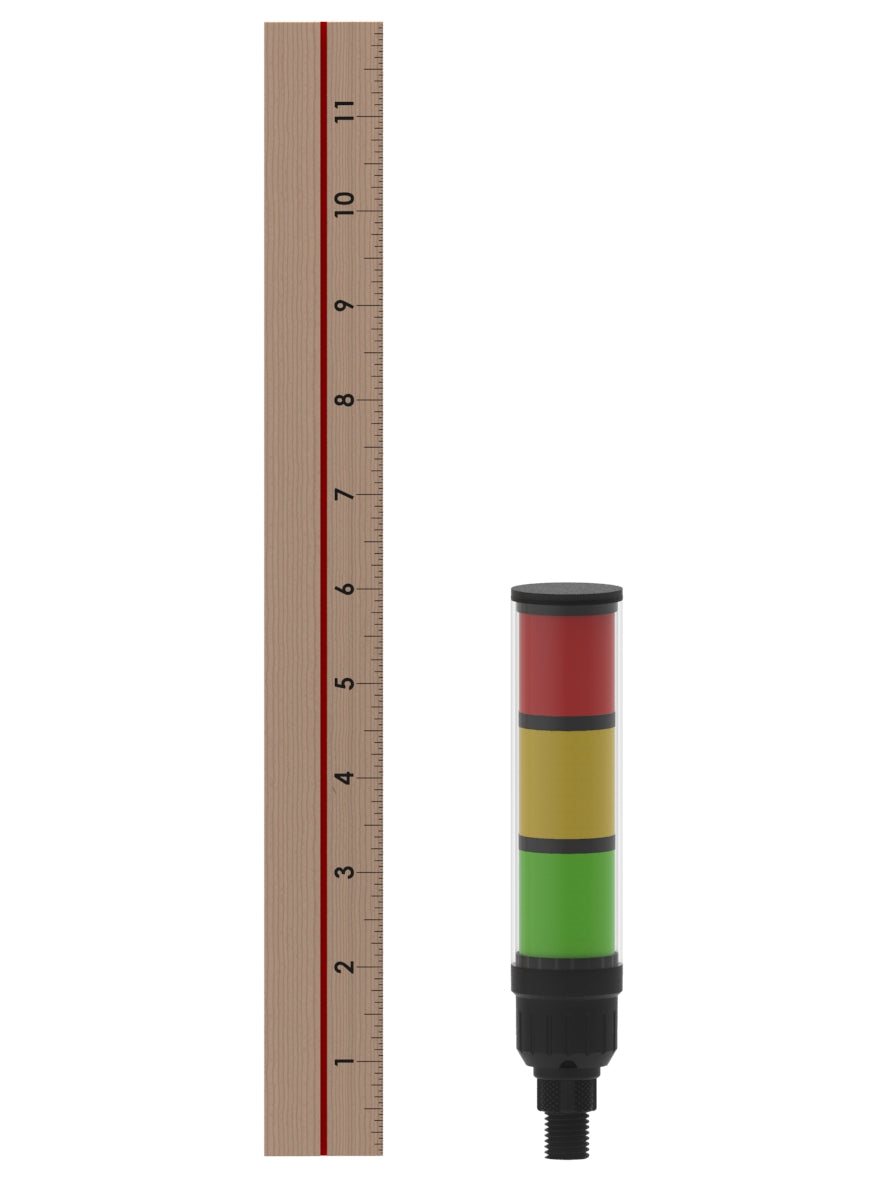

  • Small Profile 30 mm diameter indicator light x 6” tall x 1.1” diameter
  • Easy Installation
  • IP 43 Rated
  • Red Light 30mA
  • Green Light 30mA
  • Yellow Light 30mA
  • expected life 50,000 hours
  • 1-year warranty

Typical Color Status Meanings

small andon light drawing and wiring diagram SL30 Specification sheet
