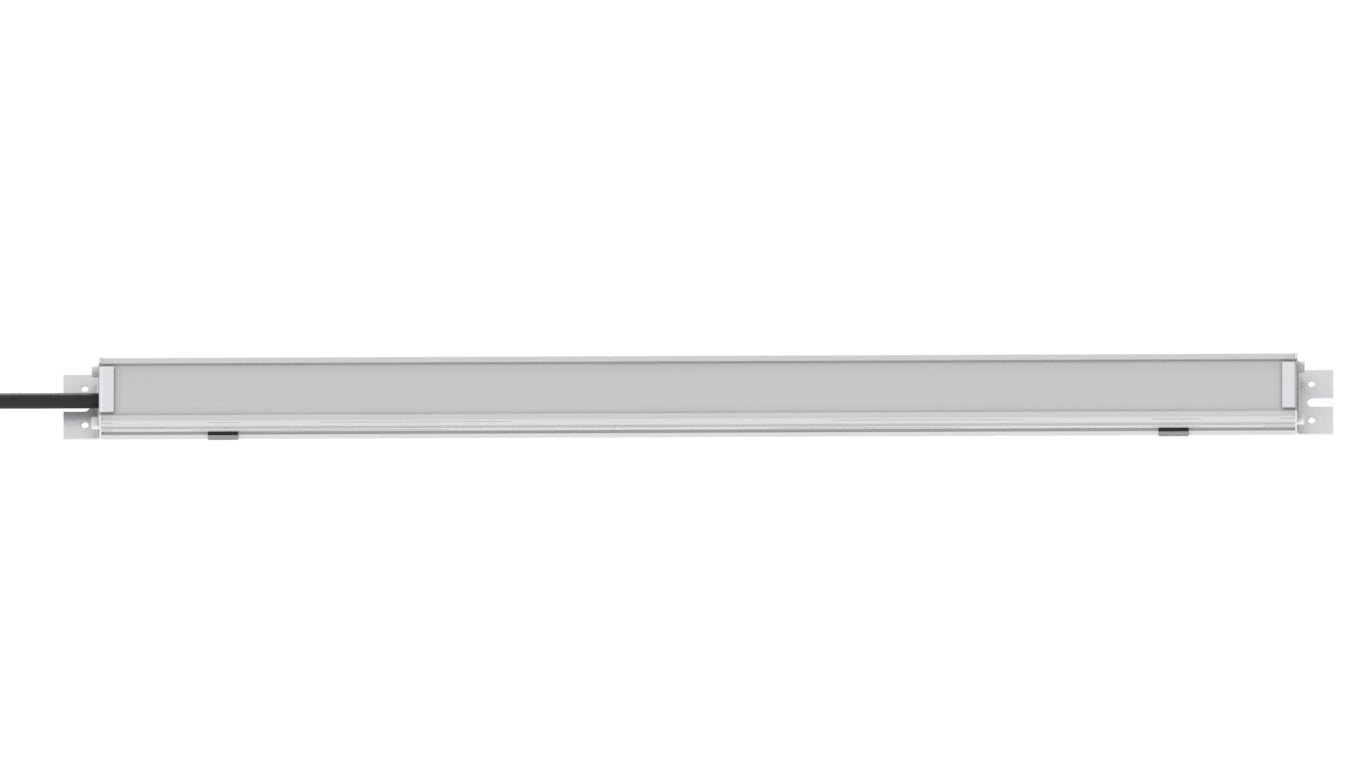

Linear Andon Light

Multicolor Bar Light

The LB line of Signal lights has many uses. They can be used on CNC machinery or automated equipment to signal the machine's status. They are often used on loading dock doors and over doorways to signal when it is safe to enter a room.

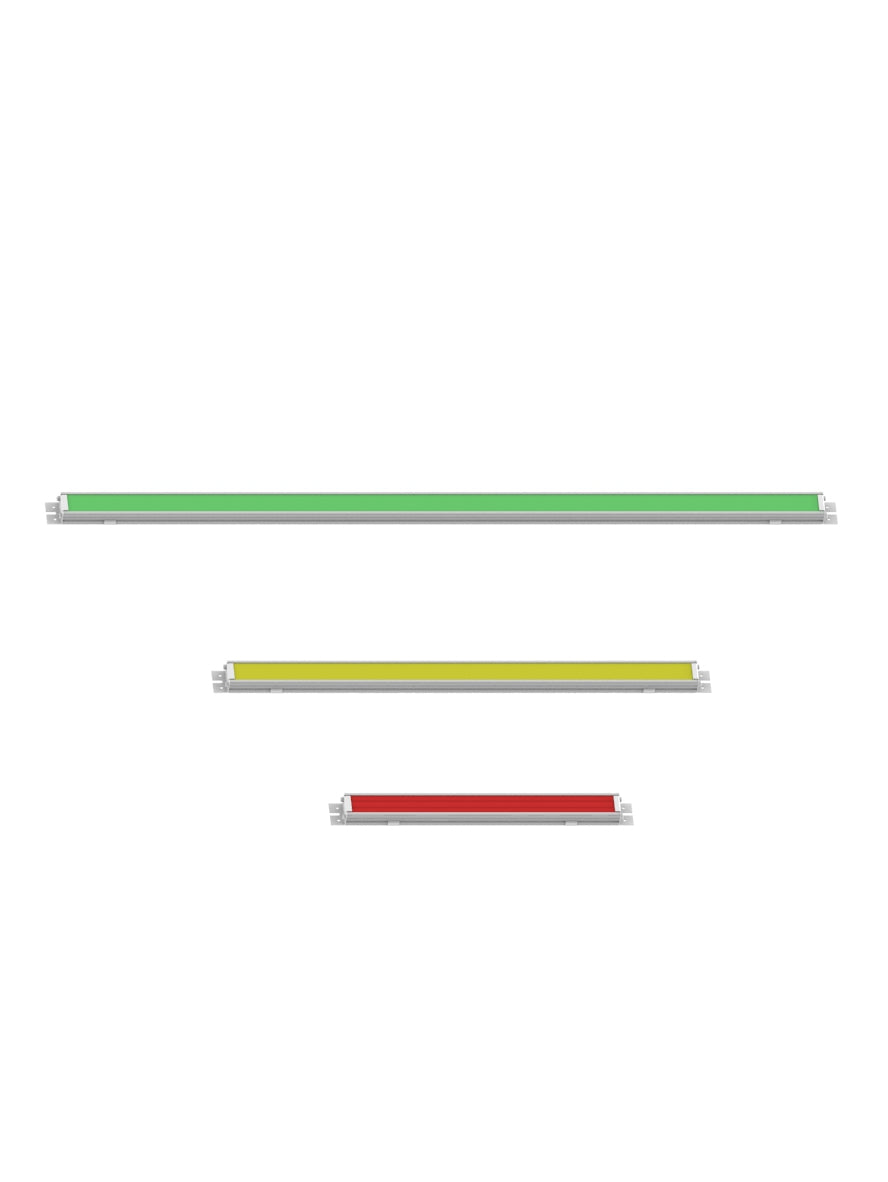

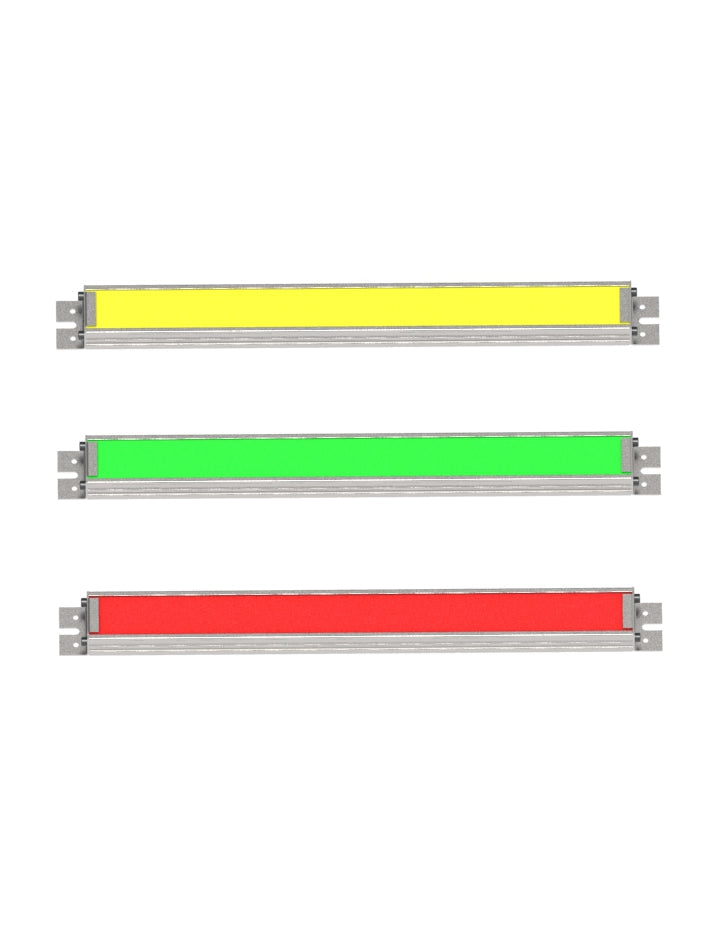

There is a 24V Dc and 110V AC version. The 24V DC light can turn 3 colors Red, Green, or Yellow.  The 110V Light can turn 7 colors. Red, green, Blue, Amber. Teal, Purple, and White. Pay special attention to the way the 110V version is wired. These often need independent switches or relays to control the color of the lights.

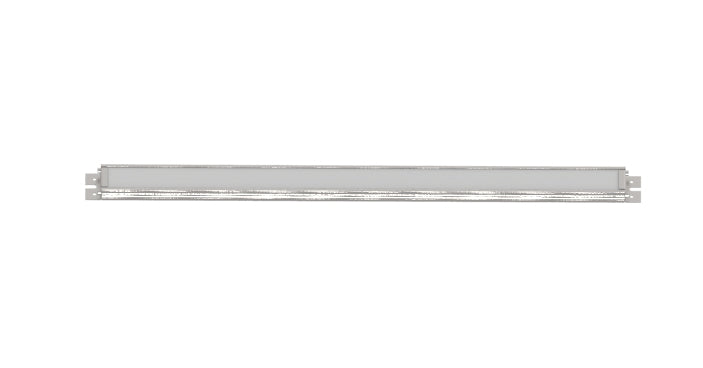

These Andon Bar Lights come in four lengths. The lengths are as follows.

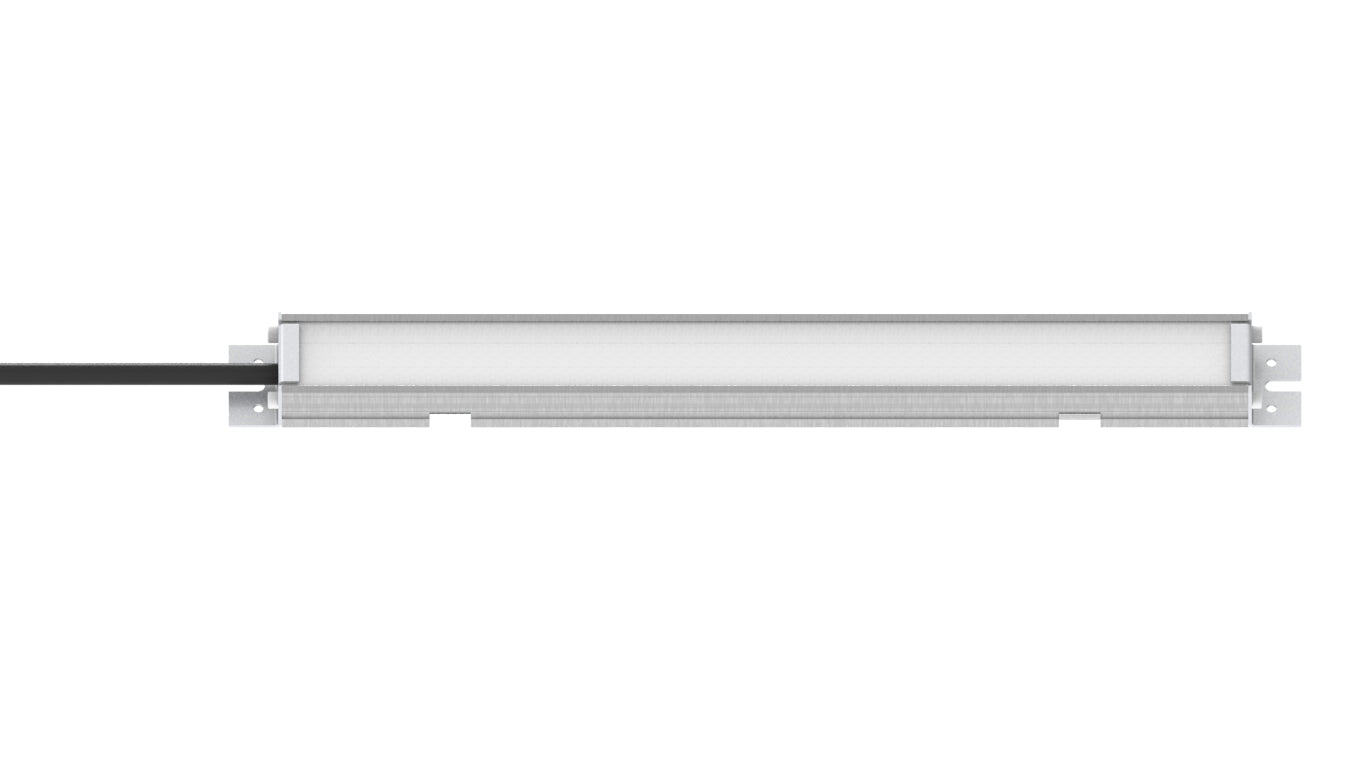

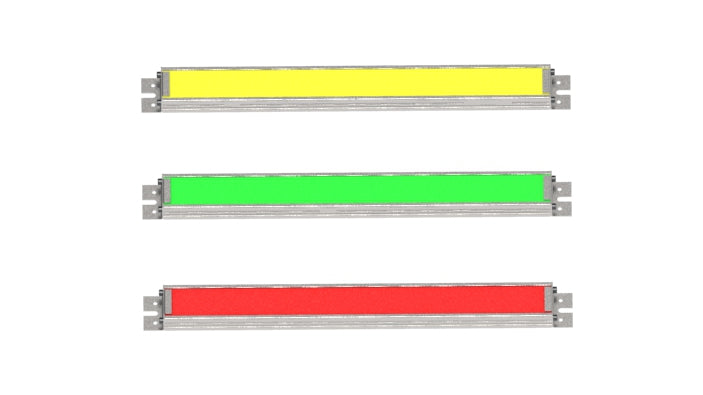

300mm (11.8")

346mm (13.6"

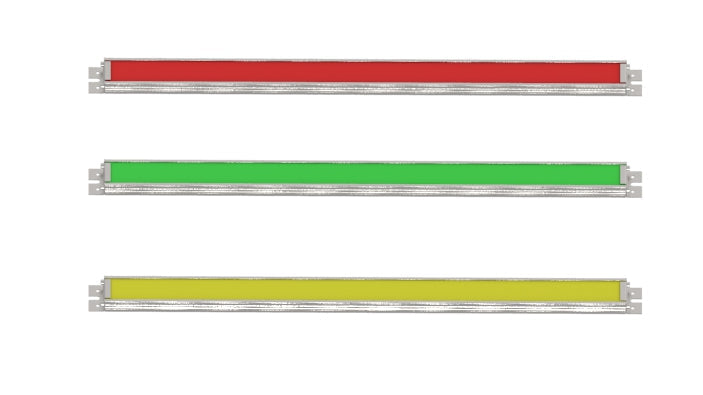

500mm ( 19.7")

625mm ( 24.6")

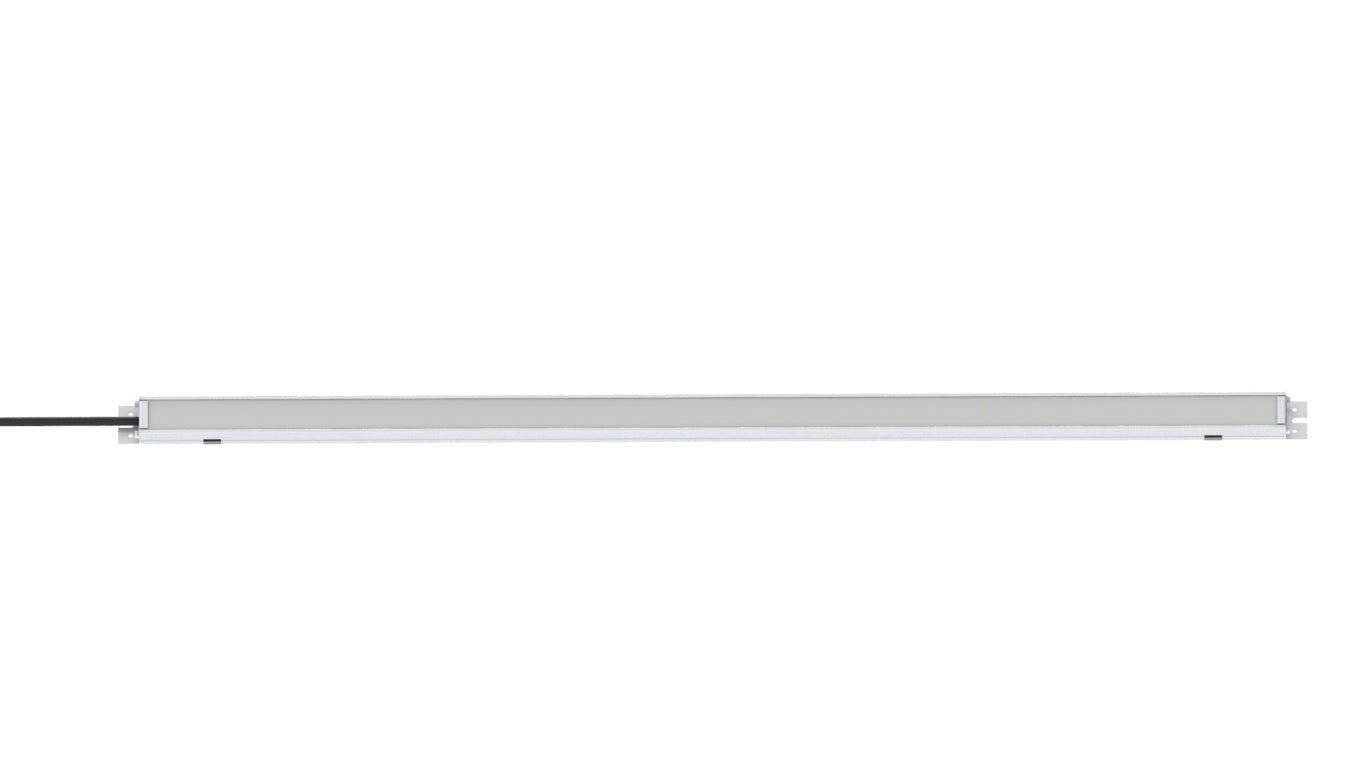

800mm (31.5")

910mm (35.8)

1190mm (46.8")

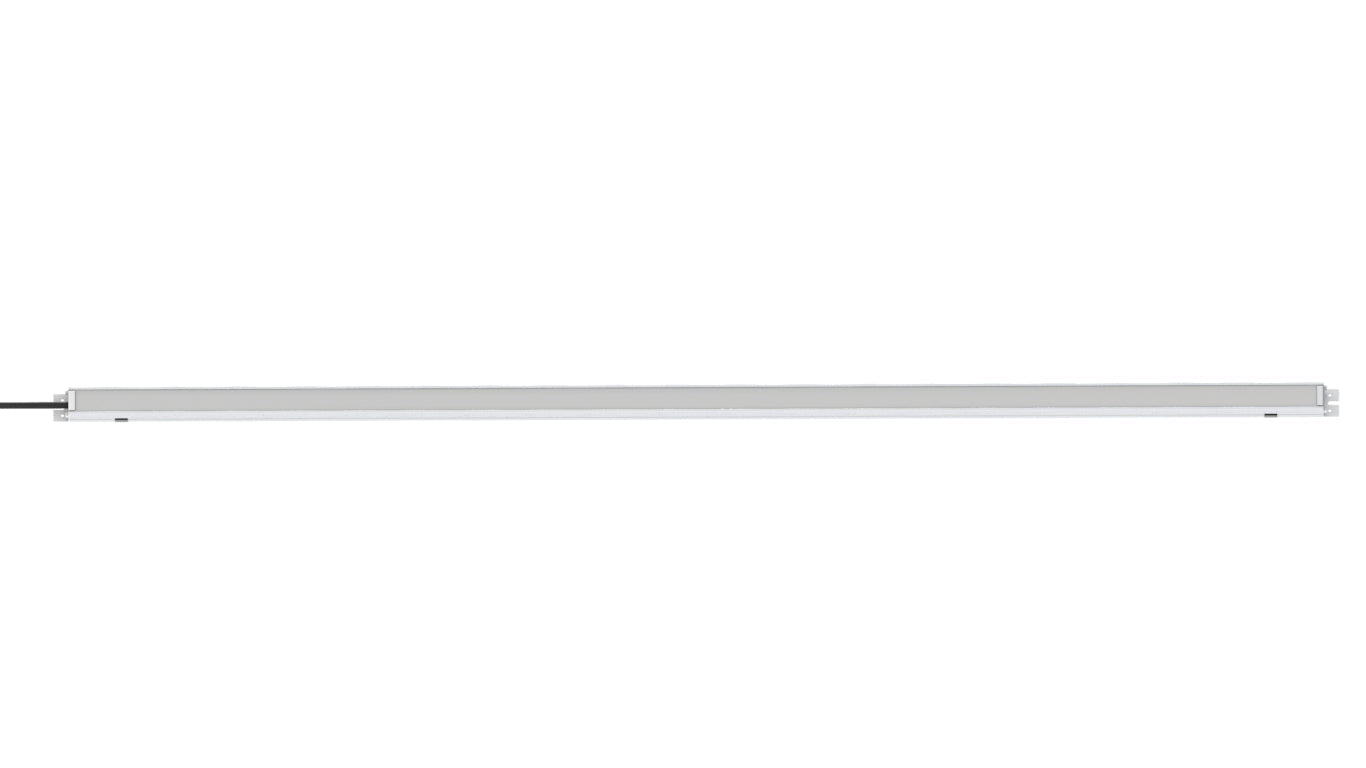

1200mm (47.2")

They are powered by 24V. The body is  Aluminum and the light diffuser is acrylic.

They can be attached with clips that are provided or attached with screws through the slots that are built into the housing.

CAD files for these lights are available below.

LB-Andon CAD FILES

Specifications:

Power - 24V DC, 110V AC

Rating - 24V DC IP20, 110V AC IP67

Light Colors -

24V DC (Red, Green, Amber)

110V AC ( Red, Green, Amber, Teal, Blue, Purple, White)

Temperature Range - +55 to -25C

Expected Life  - 50,000 hours

Lamp Shade Acrylic

Body Aluminum

24V DC Linear Andon Specifications

110V AC Linear Andon Specifications
