M12 Micro Cordset

M12 Micro Cordset

Regular price $17.57 USD
Regular price Sale price $17.57 USD
Sale Sold out
Shipping calculated at checkout.
Pins
Plug Orientation
Length (M)

SKU:CSF-4S2M

M12 Cordset, Quick Disconnect M12, M12 Sensor Cable, M12 Cable

M12 Micro Cordset

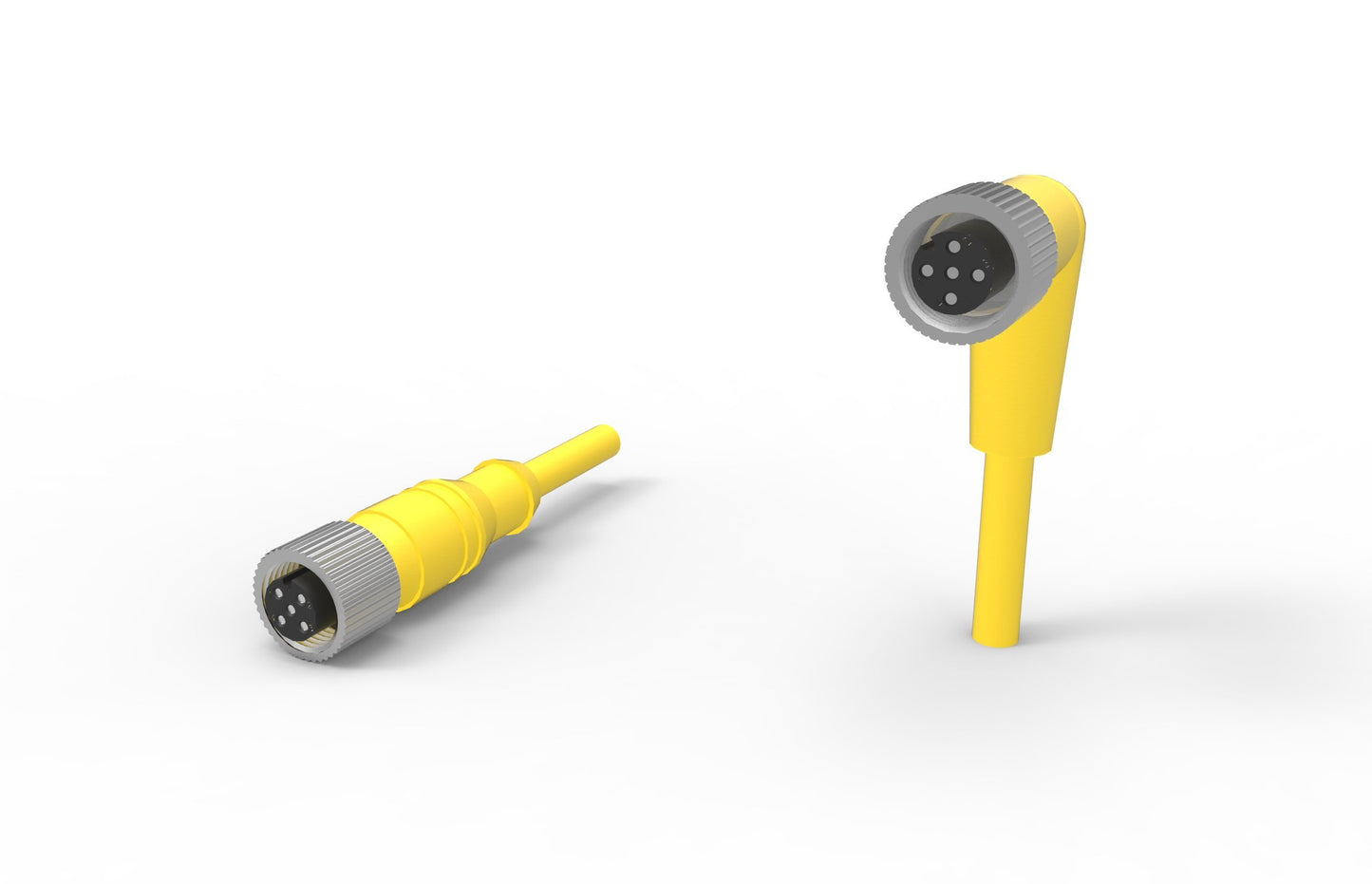

(M12) Micro quick-disconnect cables can be ordered in various lengths and can be specified with either a right angle or straight plug ends. Some typical applications for these cables are wiring for automation, robotics, sensors, machinery cables, conveyor cables, and lighting applications

 Standard cables come with a plug on one end and flying leads on the opposing end. They can also be custom ordered with plugs on both ends. The contacts are gold plated copper and the coupling is nickel plated brass. The standard jacket is PVC and is used for general applications. PUR jackets can be specified for applications that are oily or get a lot of sunlight.



Wire Gauge                              22 Gauge

Mating Thread                           M12

Voltage rating                           300V

Amperage Rating                       4 Amps

Cable O.D                                  .2”

Color Code                               DC

Jacket Material                          PVC

Jacket Color                             Yellow

Shielding                                  Nickle Plated Brass

Gland upper Range                   .2

Gland Lower Range                  .2

IP Rating                                  IP67

UL Listed                                 Yes

Canada                                    C-UL Listed
