Explosion Proof LED Light

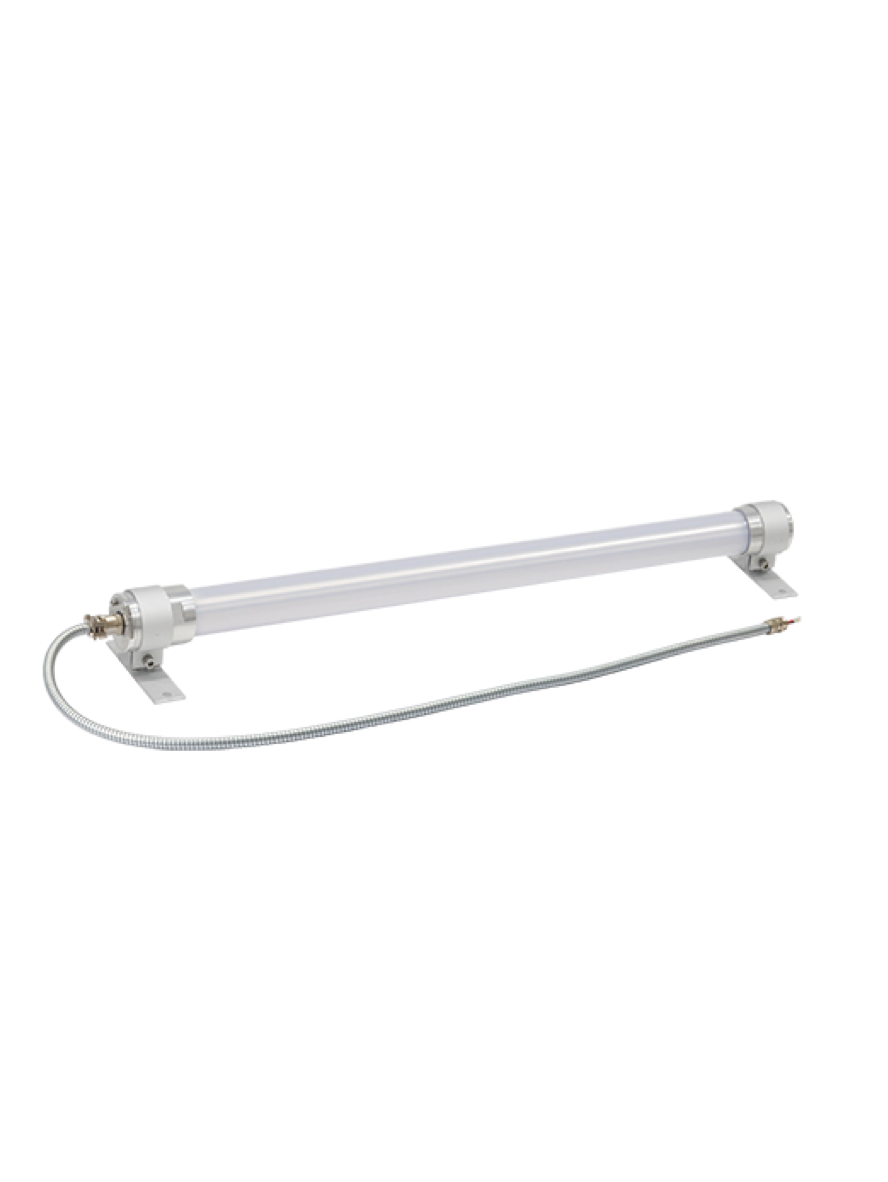

Explosion-Proof Tube Light

The EP Series is a line of explosion-proof, washdown-capable tube lights engineered for use in hazardous environments. Designed with an Ex d IIC rating, these fixtures provide reliable illumination in areas where explosive gases may be present. They also carry an IP66/67 protection rating, ensuring resistance to dust and water.

Constructed with a durable aluminum housing and a polycarbonate lens, the EP lights are built to withstand tough industrial conditions. Equipped with advanced LED technology, they deliver long-lasting, energy-efficient performance. The light angle can be adjusted by turning the light tube.

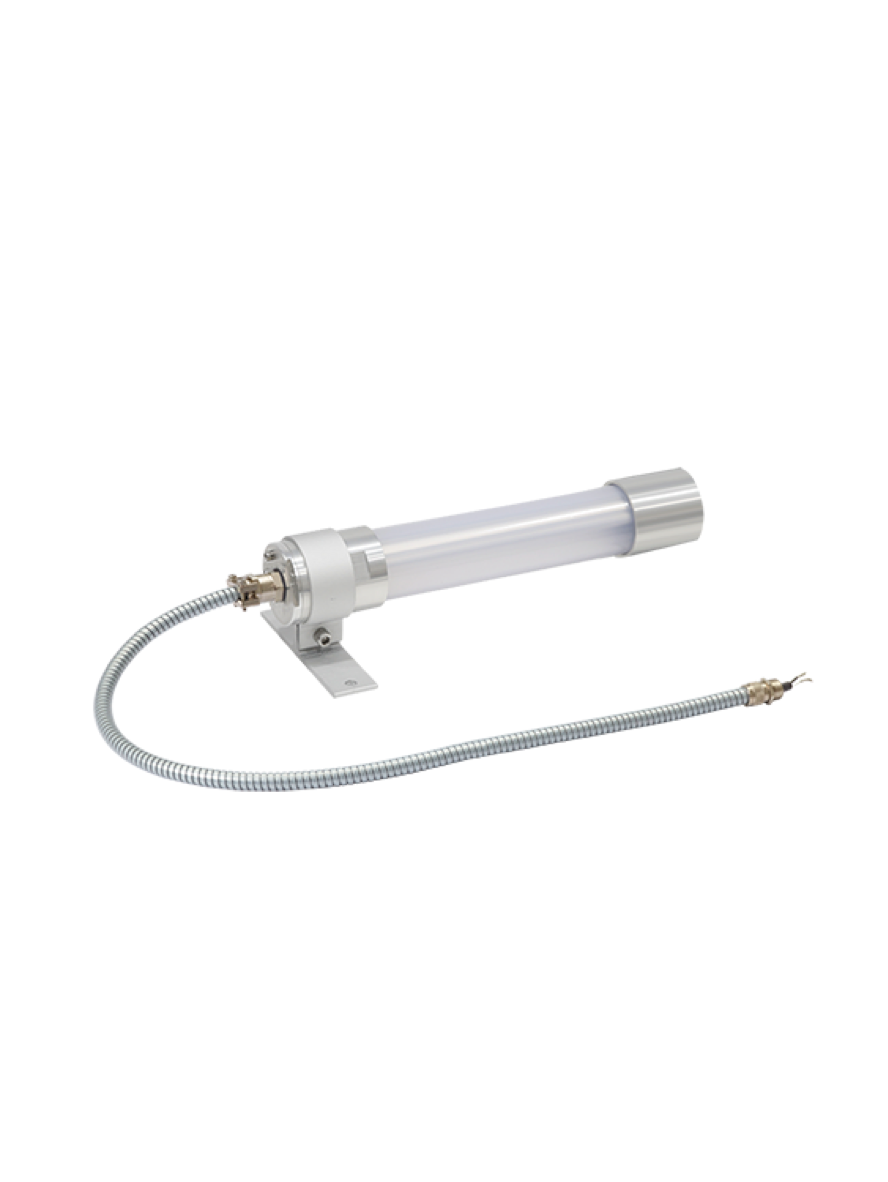

Available in 250mm (9.8")or 650mm (25.6") lengths, the MWL-EP series offers models powered by either 24V DC or 110–220V AC, providing flexibility for a range of applications.

Specifications:

Materials - side cover and bracket - Aluminum, Lens Polycarbonate

Certificates - CE, KCs, NEPSI, S-mark, ATEX, IECEx

Cabe Entry M12 x P1.5

Protection Rating

ATEX - II 2G EX db IIC T6 Gb

IECEx - EX db IIC T6 Gb

KCs - EX d II C T6(QLEX-SLM-650)

           EX d IIC T5/T6 (QLEX-SLM-250)

Luminous Flux

250mm, 24V DC = 650lm

250mm, 110-220V AC = 350lm

650mm, 24V DC = 18000lm

650mm, 110-220V AC = 1580lm

2D Drawing for Explosion-Proof Light
